Hybrid Multicore Monocat, SK4602 Trommel

Monocat Power 212, 2x CAT7 2xDMX/Audio

Varenr: X28XKM02/00-7500
38 248,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
-+
ikke på lager (14 dager)
BeskrivelseTeknisk infoSupport
Beskrivelse

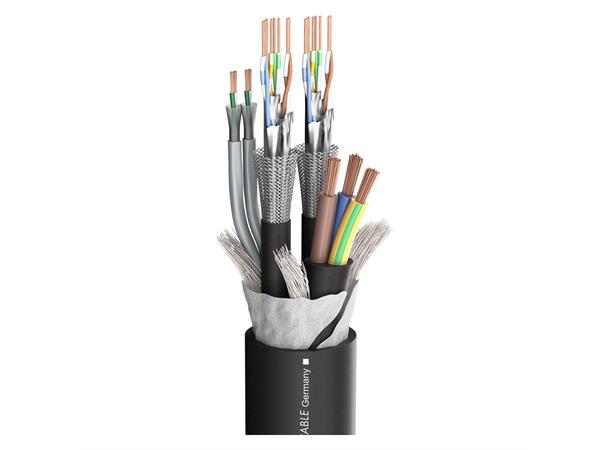

Hybrid Multicore Monocat 212 Mk2 75,00m, Monocat Power 212 PVC

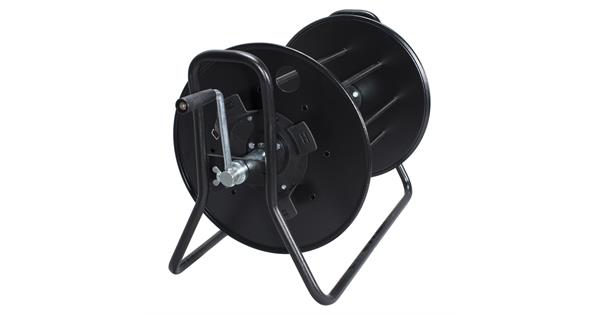

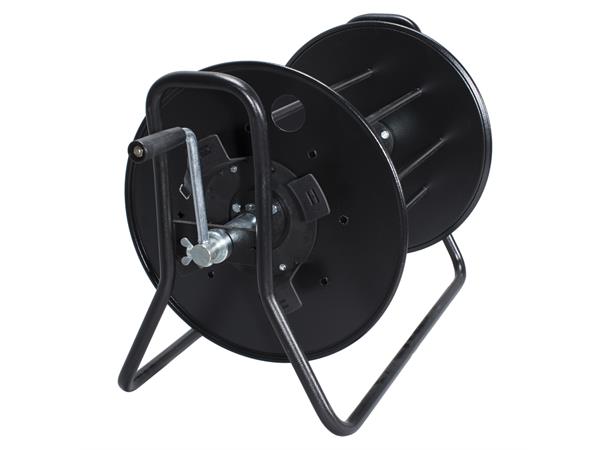

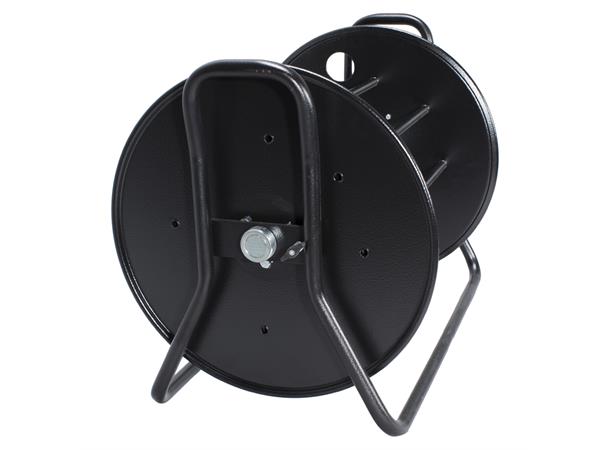

Trommel side

2x Network CAT7 4x2xAWG24/1

2x DMX/Audio 2x0,25qmm

1x Mains 3x2.5qmm2



Lang side:

1x Mennekes Schukosocket SCHU-FC230/16PSW

2x Neutrik NC3MXX-BAG 3pXLR male, blk

2x NEUTRIK Ethercon Cat6A Plug, blk NE8MX6-B













Teknisk info

Produktinformasjon

Application Cat.7a
AWG (network) 23
AWG (video) 18
BPVo-Euroclass Fca
Capacity wire/electic screen at 1 ft. (video) [pF] 16,1544
Capacity wire/electic screen at 1m (video) [pF] 53
Colour black
Conductor insulation Ø (video) [mm] 4,8
Construction [2x(02YSCCH1.2L/4.8)+(S/FTP4x2xAWG23/7)]Y
Construction (network) (S/FTP4x2xAWG23/7)
Construction (video) 2x(02YCCH1.2L/4.8)
Copper strand Ø (network) [mm] 0,22
Copper strand Ø (video) [mm] 0,4
Copper strands (network) 7
Copper strands (video) 7
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] 6,6751
Damping at 1000 MHz (100m & 20° C) [dB] 21,9
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] 8,2906
Damping at 1485 MHz (100m & 20° C) [dB] 27,2
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] 9,1135
Damping at 1750 MHz (100m & 20° C) [dB] 29,9
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] 2,8651
Damping at 200 MHz (100m & 20° C) [dB] 9,4
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] 10,2108
Damping at 2150 MHz (100m & 20° C) [dB] 33,5
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] 12,4358
Damping at 3000 MHz (100m & 20° C) [dB] 40,8
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] 4,4806
Damping at 470 MHz (100m & 20° C) [dB] 14,7
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] 6,2179
Damping at 862 MHz (100m & 20° C) [dB] 20,4
Farge Sort
Fire load per m [kWh] 1,52
Impedance (network) [Ohm] 100
Impedance (video) [Ohm] 75
Inner conductor (network) 2
Inner conductor (network) [mm²] 0,26
Inner conductor (video) 2
Inner conductor (video) [mm²] 0,88
Inner conductor Ø (video) [mm] 1,06
Jacket material S-PVC flame-retardant
Jacket material (network) PUR
Jacket material (video) PUR
Jacket Ø (network) [mm] 8,5
Jacket Ø (video) [mm] 7,1
Jacket Ø [mm] 20,4
Materiale PVC
Max. transmission distance (12G) 35 m
Max. transmission distance (3G) 150 m
Max. transmission distance (6G) 70 m
Name TRANSIT MC 2001 HD
Number of Channels (network) 4
Number of Channels (video) 2
Packing bulk stock
Shielding (network) Tin-plated Cu braid + AL/PT foil per wire pair
Shielding (video) 2 x Copper braiding tinned
Shielding factor [%] 100
Temperature max. [°C] 70
Temperature min. [°C] -20
Weight per 1 m [g] 455
Wire insulation material (video) Foam/Skin-PE
