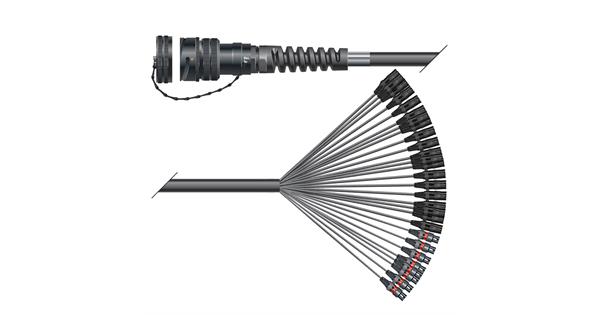

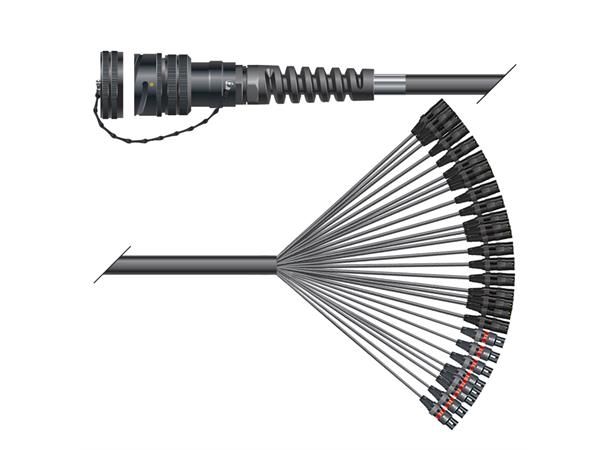

For the construction of these splices we use our highly flexible QUANTUM multipair cable with single insulated and shielded wire pairs. On the XLR side we use high-grade connectors with numbered rings from HICON and NEUTRIK®; alternatively we also offer a version with NEUTRIK® Convertcons on the returns.
28,80 m Patch & Microphone Cable SC-Scuba 14; 2 x 0,14 mm²; PVC Ø 3,80 mm; black (
200-0311)9,60 m Patch & Microphone Cable SC-Scuba 14; 2 x 0,14 mm²; PVC Ø 3,80 mm; red (
200-0313)
1 x HICON Round LK, arrangement 40A-150, size 18, 150-pol , metal-, Cable socket, bayonet husk, black (
HI-LK150FV)1 x HICON Round-LK 85 / LK 150 female (CIR32), Cover cap, Bajonet, black (
HI-LKCAP-F85)1 x Sommer cable Protective Bag for all LK-cable connectors male / female, subsequent assembly, grey (
BAG-LK-O)
24 x NEUTRIK XLR, 3-pole , metal-, Soldering-male connector, silver plated contact(s), straight, nickel coloured (
NC3MXX)8 x NEUTRIK XLR, 3-pole , metal-, Soldering-female connector, silver plated contact(s), straight, nickel coloured (
NC3FXX)
