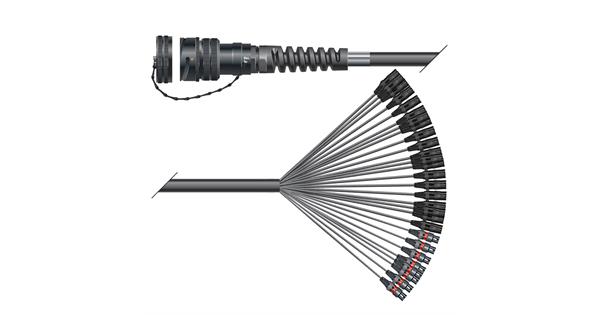

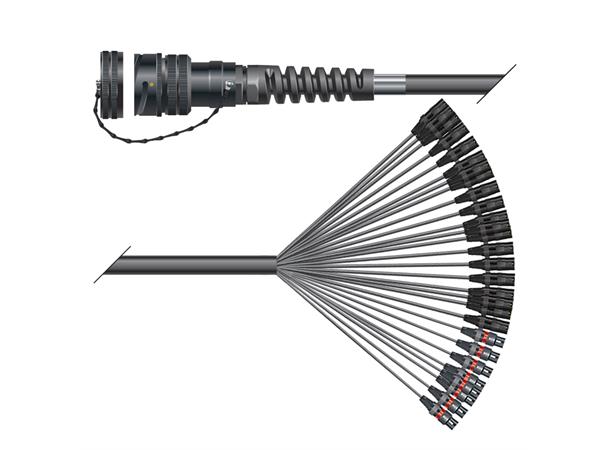

For the construction of these splices we use our highly flexible QUANTUM multipair cable with single insulated and shielded wire pairs. On the XLR side we use high-grade connectors with numbered rings from HICON and NEUTRIK; alternatively we also offer a version with NEUTRIK Convertcons on the returns.
Configuration:
9,60 m Patch & Microphone Cable SC-Scuba 14; 2 x 0,14 mm²; PVC Ø 3,80 mm; black (200-0311)
4,80 m Patch & Microphone Cable SC-Scuba 14; 2 x 0,14 mm²; PVC Ø 3,80 mm; red (200-0313)
1 x HICON Round LK, arrangement 28-21, size 16, 37-pole , metal-, Cable socket, bayonet husk, black (HI-LK037FV)
1 x HICON Round-LK 37 female (CIR28), Cover cap, Bajonet, black (HI-LKCAP-F37)
1 x Sommer cable Protective Bag for Round plug HI-LK up to 54-pole HI-SOCA 19-pole, subsequent assembly possible, grey (BAG-LKM-O)
8 x HI-X3CM-G-WOB
4 x HI-X3CF-G-WOB
