The intelligent speaker distribution...

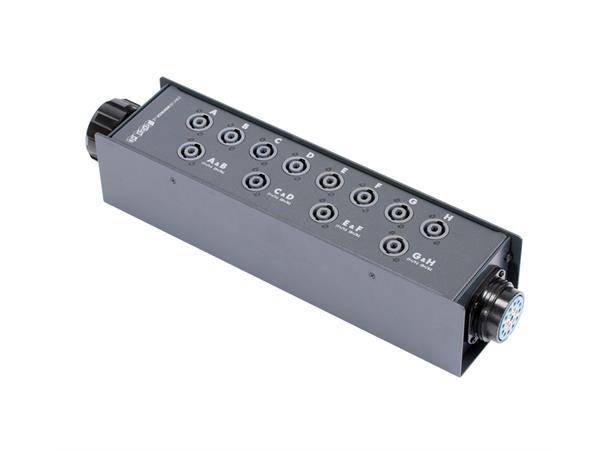

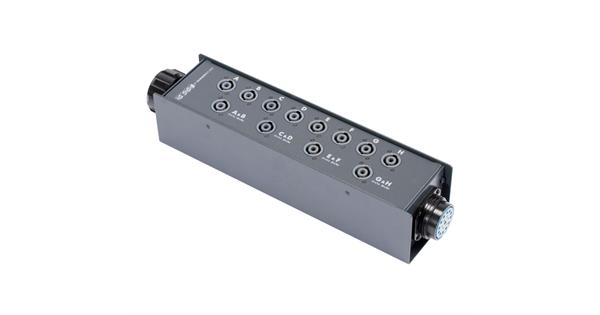

Our SP-BOXX is the modular solution for loudspeaker distribution systems – no matter if we talk about main PA systems or monitor sub-distributions. It transmits 8 loudspeaker channels simultaneously and has a very clear terminal, panel-fitted with NEUTRIK® speakON® components.
There are three NL4 sockets for each channel pair: one fully wired (1+/1–/2+/2–) and two partially wired (1+/1–). As multipin we took the 19-pole HICON HI-SOCA19 which is fully compatible with the SOCAPEX 419 series. The SP-BOXX is available with multipin input plus input and link-through multipin. The housing is made of 2 mm sheet steel and has our proven scratch-proof powder coating finish. The pin assignment has been silk-screened printed and is well readable. A lateral M10 insert nut provides fall safety when operating in dizzy
heights.
As matching cable we supply our extremely rugged ELEPHANT 16 x 4 mm², also ready-made with the HI SOCA19, and our different breakouts to Amphenol EP5, NEUTRIK® NL8 and NEUTRIK® NL4 systems. The EP5 solution is compatible with the system cabling of the loudspeaker company D&B.
