The medial triathlon
can be practiced with our top-runners in the disciplines of video, data and sound. That you are optimally prepared for your competition in the long-distance transmission of UHD-SDI signals including audio and highspeed-network (CAT.7 AWG23) or control signals. And to help you get safely over the outdoor target line, the performance package was also given a notch-proof, weather resistant, drummable PUR jacket. We hereby wish you a podium place in the next contest.
Advantages:
- HighSpeed network as well as audio and UHD-SDI compliant video transmission in one cable
- Excellent shielding, robust, weatherproof construction
- Lowest attenuation values for long distance transmissions
Application:
- Ideal for use in OB vans at sporting or major events
- Connection of UHD monitors, control consoles, broadcast cameras in- and outdoor
| Article number |
600-2811-01 |
| Name |

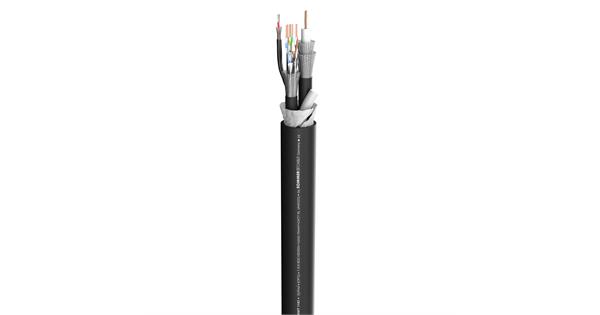

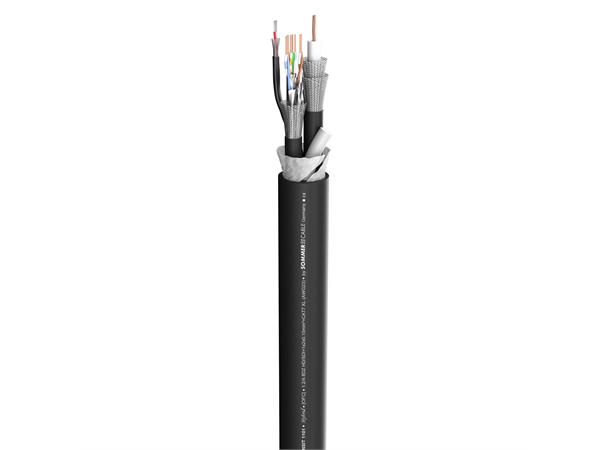

TRANSIT MC 1101 UHD-SDI |
| EAN |
4049371375450 |
| Colour |
Black |
| Construction (audio) |
(2LI2Y0,14mm²)DY |
| Construction (video) |
(02YCCH1.2L/4.8) |
| Construction (network) |
(S/FTP4x2xAWG23/7) |
| Jacket material |
PUR |
| Jacket material (audio) |
PVC |
| Jacket material (video) |
PUR |
| Jacket material (network) |
PUR |
| Jacket Ø [mm] |
19,60 |
| Jacket Ø (audio) [mm] |
3,50 |
| Jacket Ø (video) [mm] |
7,00 |
| Jacket Ø (network) [mm] |
8,50 |
| Number of Channels (audio) |
1 |
| Number of Channels (video) |
1 |
| Number of Channels (network) |
4 |
| Inner conductor (audio) |
2 |
| Inner conductor (video) |
1 |
| Inner conductor (network) |
2 |
| Inner conductor (audio) [mm²] |
0,14 |
| Inner conductor (video) [mm²] |
0,88 |
| Inner conductor (network) [mm²] |
0,26 |
| Inner conductor Ø (audio) [mm] |
0,44 |
| Inner conductor Ø (video) [mm] |
1,20 |
| AWG (audio) |
26 |
| AWG (video) |
18 |
| AWG (network) |
23 |
| Shielding (audio) |
Copper spiral, tin-plated |
| Shielding (video) |
2 x Copper braiding tinned |
| Shielding (network) |
Tin-plated Cu braid + AL/PT foil per wire pair |
| Shielding factor [%] |
100 |
| Copper strands (audio) |
19 |
| Copper strands (video) |
7 |
| Copper strands (network) |
7 |
| Copper strand Ø (audio) [mm] |
0,10 |
| Copper strand Ø (video) [mm] |
0,40 |
| Copper strand Ø (network) [mm] |
0,22 |
| Wire insulation material (video) |
Foam/Skin-PE |
| Conductor insulation Ø (video) [mm] |
4,80 |
| Weight per 1 m [g] |
352.4 |
| Packing |
bulk stock |
| CAT-Type |
CAT.7 |
| Temperature min. [°C] |
-20 |
| Temperature max. [°C] |
70 |
| [mm] |
19,6 |
| Capac. cond./cond. per 1 m (audio) [pF] |
44 |
| Capacity wire/wire at 1 ft. (audio) [pF] |
13,4112 |
| Capacity wire/wire at 1m (network) [pF] |
44 |
| Capacity wire/wire at 1 ft. (network) [pF] |
13,4112 |
| Capac. cond./shield. per 1 m (audio) [pF] |
80 |
| Capacity wire/electic screen at 1 ft. (audio) [pF] |
24,384 |
| Capacity wire/electic screen at 1m (video) [pF] |
53 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
16,1544 |
| Damping at 200 MHz (100m & 20° C) [dB] |
9,5 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2,8956 |
| Damping at 470 MHz (100m & 20° C) [dB] |
15 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4,572 |
| Damping at 862 MHz (100m & 20° C) [dB] |
20,6 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6,2789 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
22,4 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6,8275 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
27,7 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
8,443 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
30 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9,144 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
33,5 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10,2108 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
41,2 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
12,5578 |
| Surge impedance (audio) [Ω] |
110 |
| Impedance (video) [Ω] |
75 |
| Impedance (network) [Ω] |
100 |
| Insulation resist. per 1 km (audio) [GΩ] |
1 |
| Insulation resist. per 1000 feet (audio) [GΩ] |
0,3048 |
| Insulation resist. per 1 km (video) [GΩ] |
1 |
| Insulation resist. per 1000 feet (video) [GΩ] |
0,3048 |
| Insulation resist. per 1 km (network) [GΩ] |
5 |
| Insulation resist. per 1000 feet (network) [GΩ] |
1,524 |
| Conductor resistance per 1 km (audio) [Ω] |
129 |
| Conductor resistance per 1000 ft. (audio) [Ω] |
39,3192 |
| Conductor resistance per 1 km (video) [Ω] |
20 |
| Conductor resistance per 1000 ft. (video) [Ω] |
6,096 |
| Conductor resistance per 1 km (network) [Ω] |
72 |
| Conductor resistance per 1000 ft. (network) [Ω] |
21,9456 |
| Old article number |
999-0001-316-5 |
| BPVo-Euroclass |
Fca |
