Application
|
hybrid cable
|
|
Application area
|
- Installation
- Mobile outdoor / indoor
- Studio / Broadcast
|
|
AWG (audio)
|
25
|
|
AWG (network)
|
26
|
|
AWG (power)
|
13
|
|
AWG (video)
|
18
|
|
BPVo-Euroclass
|
Fca
|
|
Capacity wire/electic screen at 1m (video)
|
52 pF
|
|
Capacity wire/wire at 1m (network)
|
43 pF
|
|
Colour
|
black
|
|
Colour detailed
|
black
|
|
Conductor insulation Ø (video)
|
5 mm
|
|
Conductor resistance per 1 km (network)
|
143 Ohm
|
|
Construction (network)
|
SFTP 4x2x0,14mm²
|
|
Farge
|
Sort
|
|
Height
|
24 mm
|
|
Impedance (network)
|
100 Ohm
|
|
Impedance (video)
|
75 Ohm
|
|
Inner conductor (audio)
|
|
|
Inner conductor (network)
|
|
|
Inner conductor (power)
|
|
|
Inner conductor (video)
|
|
|
Inner conductor Ø (audio)
|
0,44 mm
|
|
Inner conductor Ø (network)
|
0,42 mm
|
|
Inner conductor Ø (power)
|
1,78 mm
|
|
Inner conductor Ø (video)
|
1,2 mm
|
|
Insulation resist. per 1 km (network)
|
5 G Ohm
|
|
Jacket material
|
Soft-PVC
|
|
Jacket material (network)
|
PVC
|
|
Jacket material (power)
|
PVC
|
|
Jacket material (video)
|
PVC
|
|
Jacket Ø
|
24 mm
|
|
Jacket Ø (audio)
|
3 mm
|
|
Jacket Ø (network)
|
6,4 mm
|
|
Jacket Ø (power)
|
10,2 mm
|
|
Jacket Ø (video)
|
6,95 mm
|
|
Materiale
|
PVC
|
|
Name
|

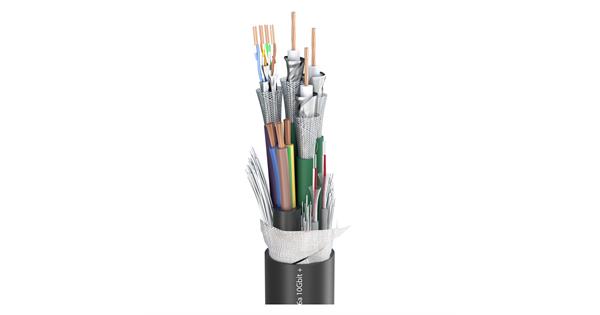

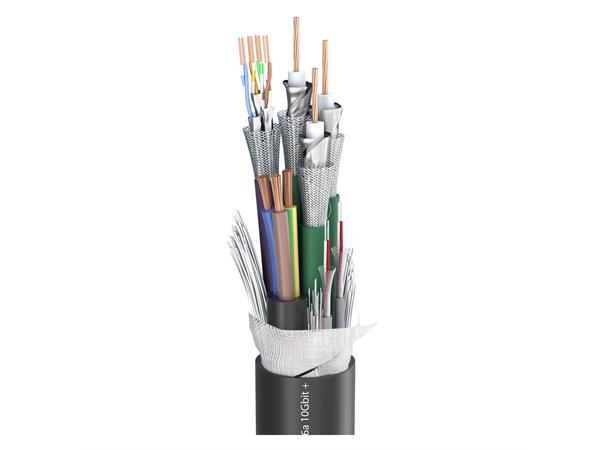

Transit MC 3231 HD-SDI
|
|
Number of Channels (audio)
|
2
|
|
Number of Channels (network)
|
1
|
|
Number of Channels (power)
|
1
|
|
Packing
|
bulk stock
|
|
Properties
|
- Analog
- Digital 75 Ohm
- OFC oxygen free copper
- SDI
|
|
Shield. resistance per 1 km
|
12 Ohm
|
|
Shielding (audio)
|
Copper spiral
|
|
Shielding (video)
|
Copper braiding + AL / PT foil
|
|
Shielding factor
|
1
|
|
Style variant
|
round
|
|
Temperature max.
|
75 °C
|
|
Temperature min.
|
-20 °C
|
|
UV-resistant
|
Yes
|
|
Weight per 1 m
|
580 g
|
|
Width
|
24 mm
|
|
Wire insulation material (video)
|
Foam/Skin-PE
|
