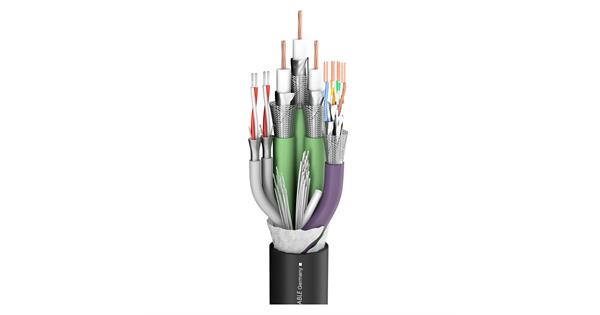

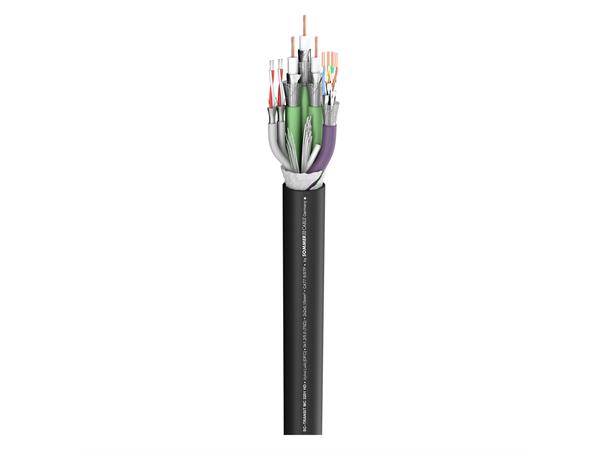

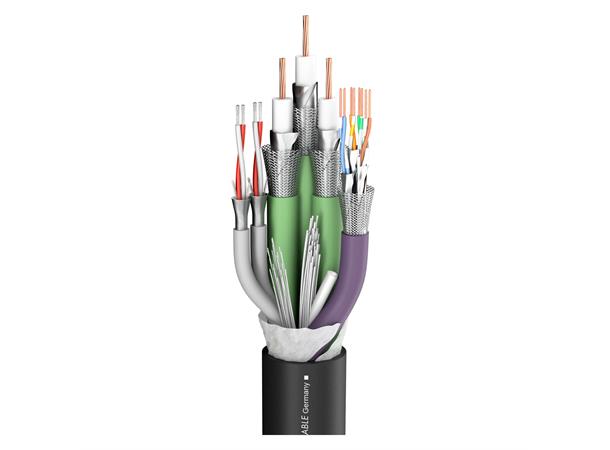

Transit MC 3201 HD-SDI; video: 3 x 1,20/5,00; audio: 2 x 2 x 0,15 mm²; 1 x CAT.7; Soft-PVC Ø 20,50 mm; black
| Name |
Transit MC 3201 HD-SDI |
| EAN |
4049371358231 |
| Properties |
SDI |
| Properties |
Analog |
| Properties |
OFC oxygen free copper |
| Properties |
Digital 75 Ω |
| Application area |
Installation |
| Application area |
Mobile outdoor / indoor |
| Application area |
Studio / Broadcast |
| Application |
hybrid cable |
| Colour |
black |
| Colour detailed |
black |
| Construction |

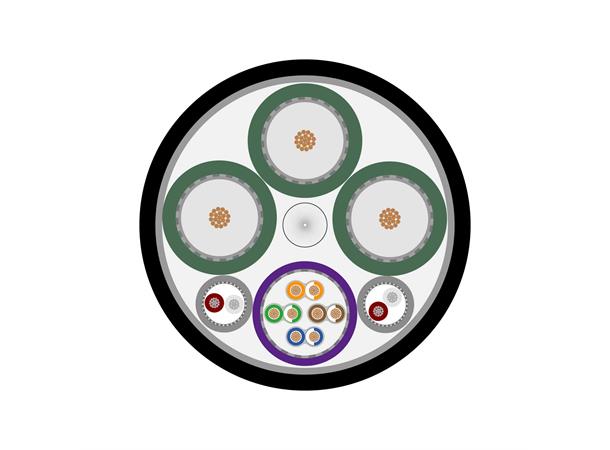

[3LI2YSCY0,1,2mm+2(2LI2Y0,15mm²)DY+SFTP4x2xAWG26/7]Y |
| Construction (audio) |
2 x 2 x 0,15mm² |
| Construction (video) |
3 x 1,2/5,0 |
| Construction (network) |
SFTP 4x2x0,14mm² |
| Jacket material |
Soft-PVC |
| Jacket material (audio) |
PVC |
| Jacket material (video) |
PVC |
| Jacket material (power) |
PVC |
| Jacket material (network) |
PVC |
| Jacket Ø [mm] |
20,50 |
| Jacket Ø (audio) [mm] |
3,00 |
| Jacket Ø (video) [mm] |
6,95 |
| Jacket Ø (network) [mm] |
6,40 |
| Number of Channels (audio) |
2 |
| Number of Channels (video) |
1 |
| Number of Channels (network) |
1 |
| Inner conductor (audio) |
2 |
| Inner conductor (video) |
3 |
| Inner conductor (network) |
8 |
| Inner conductor (audio) [mm²] |
0,15 |
| Inner conductor (video) [mm²] |
1,13 |
| Inner conductor (network) [mm²] |
0,14 |
| Inner conductor Ø (audio) [mm] |
0,44 |
| Inner conductor Ø (video) [mm] |
1,20 |
| Inner conductor Ø (network) [mm] |
0,42 |
| AWG (audio) |
25 |
| AWG (video) |
18 |
| AWG (network) |
26 |
| Shielding (audio) |
Copper spiral |
| Shielding (video) |
Copper braiding + AL / PT foil |
| Shielding (network) |
Copper braiding + AL / PT-foil per wire pair (CAT) |
| Shielding factor [%] |
100 |
| Copper strands (audio) |
19 |
| Copper strands (network) |
7 |
| Copper strand Ø (audio) [mm] |
0,10 |
| Copper strand Ø (network) [mm] |
0,16 |
| Wire insulation material (video) |
Foam / Skin-PE |
| Conductor insulation Ø (video) [mm] |
5,00 |
| Weight per 1 m [g] |
580 |
| UV-resistant |
yes |
| Fire load per m [kWh] |
3,57 |
| Style variant |
round |
| Packing |
bulk stock |
| CAT-Type |
CAT.7 |
| Velocity factor |
0,77 |
| Temperature min. [°C] |
-20 |
| Temperature max. [°C] |
75 |
| Width [mm] |
20,5 |
| [mm] |
20,5 |
| Capacity wire/wire at 1m (network) [pF] |
43 |
| Capacity wire/wire at 1 ft. (network) [pF] |
13,1064 |
| Capacity wire/electic screen at 1m (video) [pF] |
52 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
15,8496 |
| Damping at 50 MHz (100m & 20° C) [dB] |
16,9 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] |
5,1511 |
| Damping at 100 MHz (100m & 20° C) [dB] |
21,2 |
| Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6,4618 |
| Damping at 470 MHz (100m & 20° C) [dB] |
50,5 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
15,3924 |
| Damping at 862 MHz (100m & 20° C) [dB] |
77 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
23,4696 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
85,4 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
26,0299 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
109,6 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
33,4061 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
120,2 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
36,637 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
131,8 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
40,1726 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
140,5 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
42,8244 |
| Impedance (video) [Ω] |
75 |
| Impedance (network) [Ω] |
100 |
| Insulation resist. per 1 km (network) [GΩ] |
5 |
| Insulation resist. per 1000 feet (network) [GΩ] |
1,524 |
| Conductor resistance per 1 km (network) [Ω] |
143 |
| Conductor resistance per 1000 ft. (network) [Ω] |
43,5864 |
| Shield. resistance per 1 km [Ω] |
12 |
| Shield. resistance per 1000 ft. [Ω] |
3,6576 |
| Max. delay (skew) |
20 ns @ 100 MHz/100 m |
| BPVo-Euroclass |
Fca |
