Triplets in one belly...

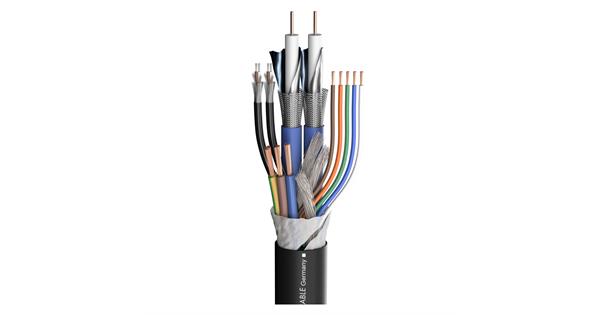

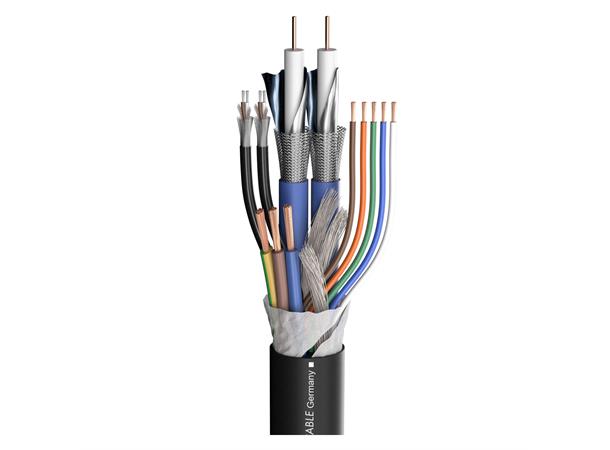

Carry picture, sound and power. The picture line is used to transmit a 75 Ω video signal, the sound line consists of a shielded AES/EBU-capable microphone cable with a wire cross-section of 2 x 0,14 mm² (2 x 0.0002 sq in.), and the current is transported over a 3 x 1,5 mm² (3 x 0.002 sq in.) power cable. The TRANSIT MC 113 is used for fixed installations (studio, theater, building technology etc.). It is also suitable for mobile and outdoor applications. The TRANSIT MC 2235 HD has another 5 control wires and one more audio and video line and is HD-capable. The TRANSIT MC 120 with one video and two audio lines, is extremely cold-resistant (–40 °C mobile use, –50 °C fixed installation) and thus ideal for mobile applications, especially for cameras with stereo audio connections.
Advantages:
- HD-SDI Video 75 Ω + Audio (+ Power)
- Very compact and flexible
- Easy handling
Application:
- Connection of surveillance monitors, cameras, cutting consoles
- Installation (studio, theatre, building technology, rack mount)
- Outdoor applications
| Article number |
600-2231 |
| Name |
Transit MC 2235 HD |
| EAN |
4049371189132 |
| Properties |
Digital 75 Ω |
| Properties |
OFC oxygen free copper |
| Properties |
Analog |
| Properties |
SDI |
| Application area |
Installation |
| Application area |
Studio / Broadcast |
| Application area |
Mobile outdoor / indoor |
| Application area |
ELA 100 V |
| Application |
hybrid cable |
| Colour |
black |
| Colour detailed |
black |
| Construction |
[2Y0,8mm(ST)CY+2(2LI2Y0,14mm²)DY+3LI2Y1,5mm²]Y |
| Construction (audio) |
2(2LI2Y0,14mm²)DY |
| Construction (video) |
2Y0,8mm(ST)CY |
| Construction (power) |
3 x 1,50 mm² |
| Construction (control) |
5 x 0,34 mm² |
| Jacket material |
S-PVC |
| Jacket material (audio) |
PVC |
| Jacket material (video) |
PVC |
| Jacket Ø [mm] |
15,50 |
| Jacket Ø (audio) [mm] |
2,60 |
| Number of Channels (audio) |
2 |
| Number of Channels (video) |
2 |
| Number of Channels (power) |
1 |
| Number of Channels (control) |
5 |
| Inner conductor (audio) |
2 |
| Inner conductor (video) |
2 |
| Inner conductor (power) |
3 |
| Inner conductor (audio) [mm²] |
0,14 |
| Inner conductor (video) [mm²] |
0,50 |
| Inner conductor (power) [mm²] |
1,50 |
| Inner conductors (control) [mm²] |
0,34 |
| Inner conductor Ø (audio) [mm] |
0,42 |
| Inner conductor Ø (video) [mm] |
0,80 |
| Inner conductor Ø (power) [mm] |
1,38 |
| Inner conductor Ø (control) [mm] |
0,66 |
| AWG (audio) |
26 |
| AWG (video) |
20 |
| AWG (control) |
22 |
| Shielding (audio) |
Copper spiral, tin-plated |
| Shielding (video) |
Copper braiding tin-plated + AL / PT foil |
| Shielding factor [%] |
100 |
| Copper strands (audio) |
18 |
| Copper strand Ø (audio) [mm] |
0,10 |
| Copper strand Ø (control) [mm] |
0,25 |
| Wire insulation material (video) |
Foam / Skin-PE |
| Conductor insulation Ø (video) [mm] |
3,70 |
| Weight per 1 m [g] |
254 |
| UV-resistant |
yes |
| Fire load per m [kWh] |
1,01 |
| Style variant |
round |
| Packing |
bulk stock |
| Temperature min. [°C] |
-20 |
| Temperature max. [°C] |
70 |
| Width [mm] |
15,5 |
| [mm] |
15,5 |
| Capac. cond./cond. per 1 m (audio) [pF] |
78 |
| Capacity wire/wire at 1 ft. (audio) [pF] |
23,7744 |
| Capac. cond./shield. per 1 m (audio) [pF] |
130 |
| Capacity wire/electic screen at 1 ft. (audio) [pF] |
39,624 |
| Capacity wire/electic screen at 1m (video) [pF] |
54 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
16,4592 |
| Damping at 50 MHz (100m & 20° C) [dB] |
5,7 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] |
1,7374 |
| Damping at 200 MHz (100m & 20° C) [dB] |
10,8 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
3,2918 |
| Damping at 470 MHz (100m & 20° C) [dB] |
16,9 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
5,1511 |
| Damping at 862 MHz (100m & 20° C) [dB] |
23,4 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7,1323 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
25,1 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7,6505 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
31,4 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9,5707 |
| Impedance (video) [Ω] |
75 |
| BPVo-Euroclass |
Fca |
