When cables get married...

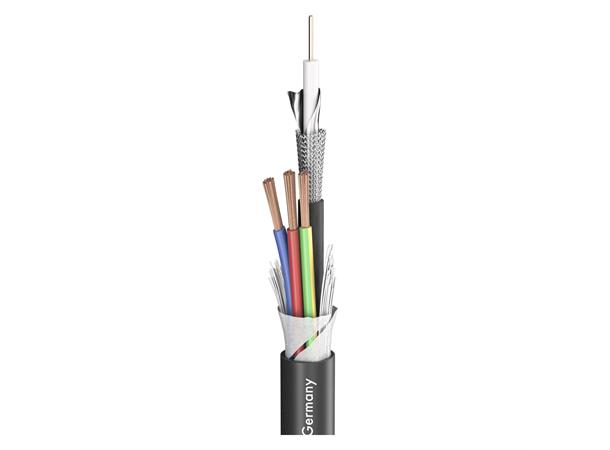

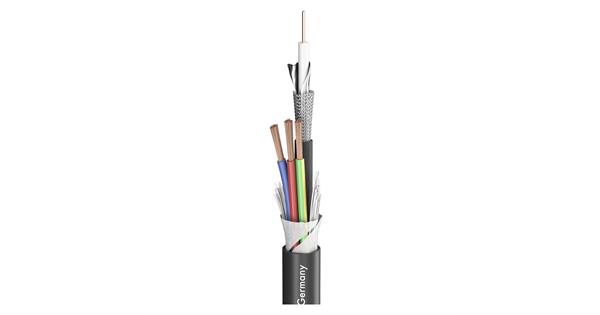

This is a logical consequence then! Inseparably the video and power lines are embedded side by side in one jacket. The SC-Observer 1 HD consists of a high-grade 75 Ω video cable, surrounded by a stranded power cable with a wire cross-section of 3 x 0,75 mm². This construction makes it possible to transmit video signals while at the same time establishing the power supply to the monitor or camera. The cable is very flexible, cold resistant, robust and very easy to handle.
Advantages:
- 75 Ω cable and power line in one cable
- Very durable and rugged due to high-quality PVC jacket
- Very good damping values of the 75 Ω video line
- Excellent shielding owing to the combination of Cu mesh screen plus AL/PT foil
Application:
- Control of surveillance monitors
- Studio and fixed installations
| Article number |
600-2101 |
| Name |
SC-Observer 1 HD |
| EAN |
4049371003995 |
| Properties |
OFC oxygen free copper |
| Properties |
Analog |
| Properties |
SDI |
| Properties |
Digital 75 Ω |
| Application area |
Studio / Broadcast |
| Application area |
Mobile outdoor / indoor |
| Application area |
Installation |
| Application |
Video- & Power cable |
| Colour |
black |
| Colour detailed |
black |
| Construction |
[LI02YSC12Y0,60mm+3x0,75mm²]Y |
| Construction (video) |
LI02YSC12Y0,60mm |
| Construction (power) |
3 x 0,75 mm² |
| Jacket material |
S-PVC |
| Jacket Ø [mm] |
9,00 |
| Jacket Ø (power) [mm] |
0,00 |
| Number of Channels (video) |
1 |
| Number of Channels (power) |
1 |
| Inner conductor (video) |
1 |
| Inner conductor (power) |
3 |
| Inner conductor (video) [mm²] |
0,28 |
| Inner conductor (power) [mm²] |
0,75 |
| Inner conductor Ø (video) [mm] |
0,60 |
| Inner conductor Ø (power) [mm] |
0,98 |
| AWG (video) |
23 |
| AWG (power) |
18 |
| Shielding (video) |
Copper braiding + AL / PT foil |
| Shielding factor [%] |
100 |
| Copper strands (video) |
1 |
| Copper strand Ø (video) [mm] |
0,60 |
| Wire insulation material (video) |
Gas Injected-PE |
| Conductor insulation Ø (video) [mm] |
2,80 |
| Weight per 1 m [g] |
110 |
| UV-resistant |
yes |
| Fire load per m [kWh] |
0,38 |
| Style variant |
round |
| Packing |
bulk stock |
| Temperature min. [°C] |
-20 |
| Temperature max. [°C] |
80 |
| Width [mm] |
9,7 |
| [mm] |
9,7 |
| Capacity wire/electic screen at 1m (video) [pF] |
55 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
16,764 |
| Damping at 50 MHz (100m & 20° C) [dB] |
7,3 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2,225 |
| Damping at 100 MHz (100m & 20° C) [dB] |
10,8 |
| Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] |
3,2918 |
| Damping at 200 MHz (100m & 20° C) [dB] |
14,5 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4,4196 |
| Damping at 470 MHz (100m & 20° C) [dB] |
22,7 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6,919 |
| Damping at 862 MHz (100m & 20° C) [dB] |
31,1 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9,4793 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
33,6 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10,2413 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
41,2 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
12,5578 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
45,5 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
13,8684 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
49,5 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
15,0876 |
| Impedance (video) [Ω] |
75 |
| Conductor resistance per 1 km [Ω] |
62,2 |
| Conductor resistance per 1000 ft. [Ω] |
18,9586 |
| Nominal voltage (power) [V] |
300 |
| BPVo-Euroclass |
Fca |
