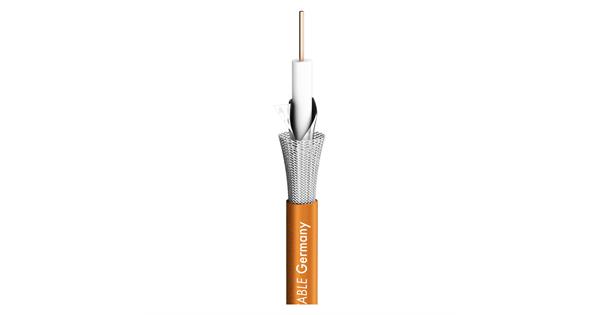

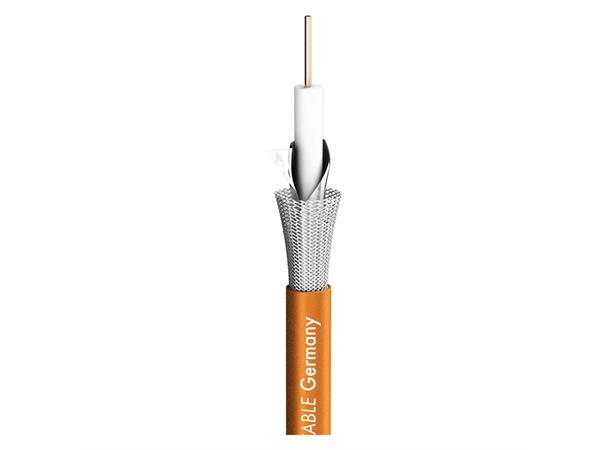

SC-SLIMLINE (RCB), 0.6/2.8, orange, PVC HD-SDI-videokabel.

SC-SLIMLINE (RCB), 0.6/2.8, orange, PVC

HD-SDI-videokabel.

Varenr: 600-0855
19,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
FargeOransje
SC-SLIMLINE (RCB), 0.6/2.8, sort, PVC HD-SDI-videokabel.
SC-SLIMLINE (RCB), 0.6/2.8, grønn, PVC HD-SDI-videokabel.
SC-SLIMLINE (RCB), 0.6/2.8, gul, FRNC HD-SDI-videokabel.
SC-SLIMLINE (RCB), 0.6/2.8, orange, PVC HD-SDI-videokabel.
SC-SLIMLINE (RCB), 0.6/2.8, lilla, PVC HD-SDI-videokabel.
Materiale
Vis varianter som liste
-+
ikke på lager (13 dager)
BeskrivelseTeknisk infoSupport
Beskrivelse

Looking for the superstar...

among the video and sat cables? The SC-Slimline RCB meets all requirements put on high-quality HD-SDI/HDTV cables these days and, owing to the use of high-grade materials, promises a long service life. To achieve super low damping values, we have fitted the cable with a massive OFC (oxygen-free copper) wire, a gas-injected insulation and a dual screen (Cu mesh screen + AL/PT foil).

Advantages:

  • Long life due to non-aging jacket
  • Consistent, optimised electrical values due to the use of a massive
    OFC wire
  • Gas-injected insulation for best damping values

Application:

  • HD-SDI-video transmission in the professional broadcasting/studio sector
  • OB van technology
  • Permanent installation, HF technology and antenna construction
Teknisk info

Produktinformasjon

Application video cable
Application area
  • ELA 100 V
  • Installation
AWG (video) 23
BPVo-Euroclass Fca
Capacity wire/wire at 1m (video) 53 pF
Colour orange
Colour detailed orange
Conductor insulation material Gas Injected-PE
Conductor insulation Ø 2,8 mm
Copper strand Ø (video) 0,60 mm
Copper strands (video) 1
Farge Oransje
Fire load per m 0,06 kWh
Height 4,2 mm
Impedance 75 Ohm
Inner conductor (video) 1
Inner conductor Ø (video) 0,6 mm
Jacket material PVC
Jacket Ø 4,2 mm
Materiale PVC
Max. transmission distance (3G) 30 m
Max. transmission distance (HD-SDI) 100 m
Max. transmission distance (SDI) 120 m
Number of Channels (video) 1
Packing
  • 100 m spool
  • 1000 m spool
  • 500 m spool
Properties
  • Analog
  • Digital 75 Ohm
  • HDTV
  • OFC oxygen free copper
  • SDI
Shield. resistance per 1 km 17 Ohm
Shielding Copper braiding tin-plated + AL / PT foil
Shielding factor 1
Style variant round
Temperature max. 70 °C
Temperature min. -30 °C
Velocity factor 0,82
Weight per 1 m 22 g
Width 4,2 mm
