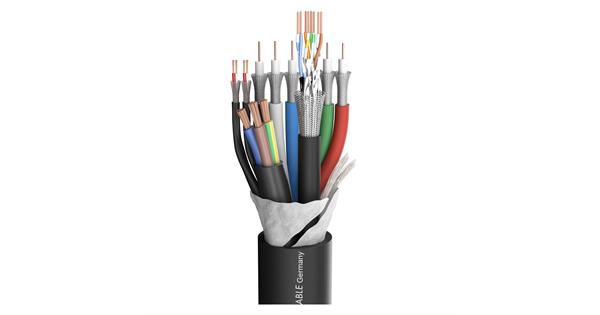

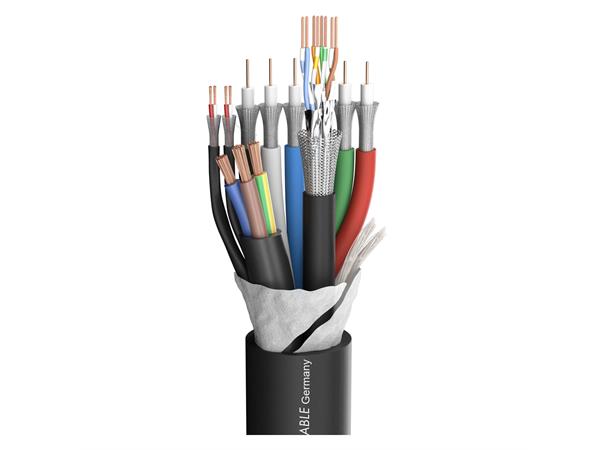

TRANSIT MC 5231HD 75 Ohm, Durchm. 22,5mm

Video, audio, CAT.6 og strøm.

Varenr: 600-0621-05

289,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.

ikke på lager (14 dager)

Beskrivelse

Transit MC5231 HD-0.8; video: 5 x 0,60/2,80; audio: 2 x 2 x 0,15 mm²; power: 3 x 2,50 mm²; 1 x CAT.7; PVC Ø 22,50 mm; black

Teknisk info

Application	hybrid cable
Application area	Installation Mobile outdoor / indoor Stage / live Studio / Broadcast
AWG (audio)	26
AWG (network)	24
AWG (power)	13
AWG (video)	23
BPVo-Euroclass	Fca
Capacity wire/electic screen at 1m (video)	55 pF
Colour	black
Colour detailed	black
Conductor insulation Ø (video)	2,8 mm
Construction (network)	SFTP 4x2x0,53mm
Farge	Sort
Fire load per m	1,58 kWh
Height	24,8 mm
Inner conductor (audio)	0,15 mm² 2
Inner conductor (network)	0,22 mm² 8
Inner conductor (power)	2,5 mm² 3
Inner conductor (video)	0,28 mm² 5
Inner conductor Ø (audio)	0,44 mm
Inner conductor Ø (network)	0,53 mm
Inner conductor Ø (power)	1,78 mm
Inner conductor Ø (video)	0,6 mm
Jacket material	PVC
Materiale	PVC
Number of Channels (audio)	2
Number of Channels (network)	1
Number of Channels (power)	1
Number of Channels (video)	1
Properties	Analog Digital 110 Ohm AES / EBU Digital 75 Ohm SDI
Shielding (network)	Copper braiding + AL / PT foil
Shielding (video)	Copper braiding + AL / PT foil
Shielding factor	1
Style variant	round
Surge impedance (audio)	100 Ohm
Temperature max.	75 °C
Temperature min.	-20 °C
UV-resistant	Yes
Weight per 1 m	670 g
Width	24,8 mm
Wire insulation material (video)	Foam/Skin-PE
