Application
|
Multicoax & Audio
|
|
Application area
|
- Installation
- Mobile outdoor / indoor
- Stage / live
- Studio / Broadcast
|
|
AWG (audio)
|
26
|
|
AWG (video)
|
23
|
|
BPVo-Euroclass
|
Fca
|
|
Capac. cond./cond. per 1 m (audio)
|
65 pF
|
|
Colour
|
black
|
|
Colour detailed
|
black
|
|
Conductor insulation Ø (video)
|
2,8 mm
|
|

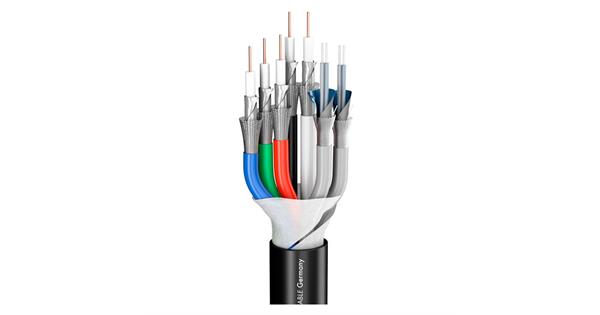

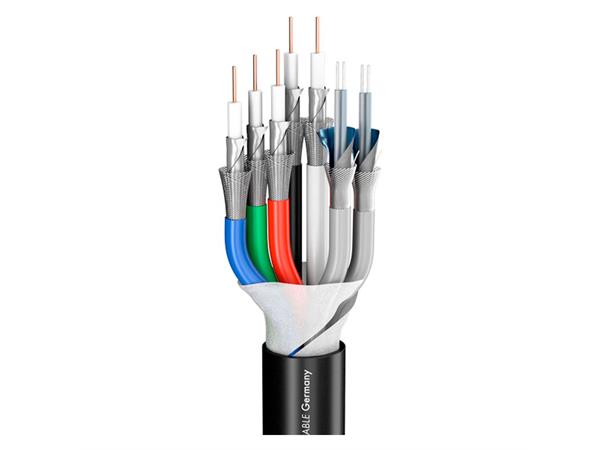

Construction
|
[5LI2YSCY0,60mm+2(2LI2Y0,14mm²)DY]H
|
|
Copper strand Ø (audio)
|
0,07 mm
|
|
Copper strand Ø (video)
|
0,60 mm
|
|
Copper strands (audio)
|
36
|
|
Copper strands (video)
|
1
|
|
Farge
|
Sort
|
|
Fire load per m
|
1,5 kWh
|
|
Height
|
15,6 mm
|
|
Inner conductor (audio)
|
|
|
Inner conductor (video)
|
|
|
Inner conductor Ø (audio)
|
0,42 mm
|
|
Inner conductor Ø (video)
|
0,6 mm
|
|
Jacket material
|
FRNC
|
|
Materiale
|
FRNC
|
|
Number of Channels (audio)
|
2
|
|
Number of Channels (video)
|
1
|
|
Packing
|
bulk stock
|
|
Properties
|
- Analog
- Digital 75 Ohm
- FRNC flame retardant
- OFC oxygen free copper
- SDI
|
|
Shielding (audio)
|
Helical Cu screen tinned + AL / PT foil
|
|
Shielding (video)
|
Cu mesh, tinned 95% + AL / PT-foil
|
|
Shielding factor
|
1
|
|
Style variant
|
round
|
|
Temperature max.
|
70 °C
|
|
Temperature min.
|
-25 °C
|
|
UV-resistant
|
Yes
|
|
Weight per 1 m
|
300 g
|
|
Width
|
15,6 mm
|
|
Wire insulation material (video)
|
Foam/Skin-PE
|
