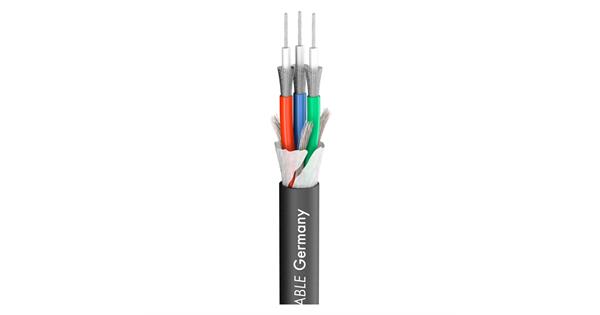

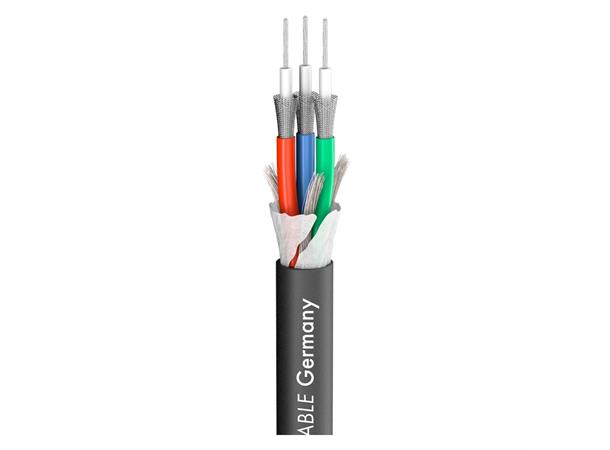

TRANSIT MINI FLEX Videokabel 75 Ohm sort

Tre ledere 75 Ohm.

Varenr: 600-0251-03

61,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.

ikke på lager (13 dager)

Beskrivelse

video cable Transit MINI Flex; 1 x 0,32; Antistatic-PVC Ø 8,20 mm; black

Teknisk info

Application	video cable
Application area	Installation Mobile outdoor / indoor Stage / live Studio / Broadcast
AWG (video)	28
BPVo-Euroclass	Fca
Capacity wire/electic screen at 1m (video)	56 pF
Colour	black
Colour detailed	black
Conductor insulation material	Foam/Skin-PE
Conductor insulation Ø	1,6 mm
Copper strand Ø (video)	0,12 mm
Copper strands (video)	7
Farge	Sort
Fire load per m	0,27 kWh
Height	8,2 mm
Impedance	75 Ohm
Inner conductor (video)	3
Inner conductor Ø (video)	0,32 mm
Jacket material	Antistatic-PVC
Jacket Ø	8,2 mm
Materiale	PVC
Number of Channels (video)	1
Packing	bulk stock
Properties	Analog Digital 75 Ohm OFC oxygen free copper
Return loss	20 dB
Shielding	Copper braiding tin-plated
Shielding factor	0,95
Style variant	round
Temperature max.	70 °C
Temperature min.	-20 °C
UV-resistant	Yes
Velocity factor	0,66
Weight per 1 m	78 g
Width	8,2 mm
