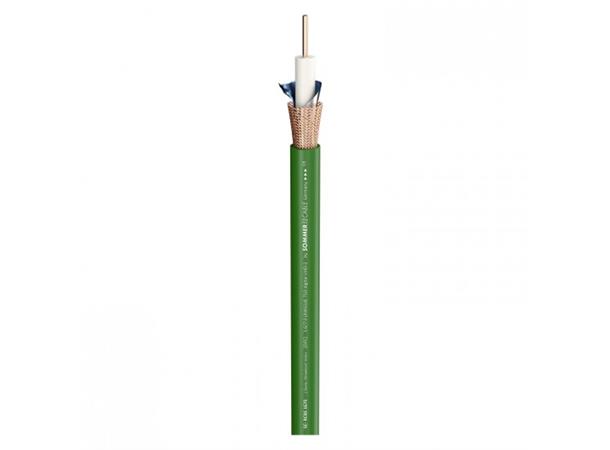

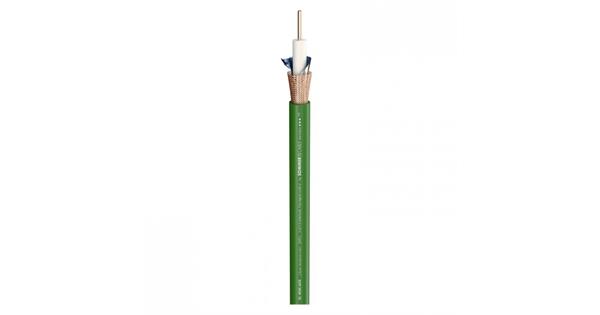

SC-VECTOR PLUS RCB 1.6L/7.0, grønn HD-SDI og 3G-SDI kabel. SC-VECTOR PLUS RCB 1.6L/7.0, grønn HD-SDI og 3G-SDI kabel.

SC-VECTOR PLUS RCB 1.6L/7.0, grønn

HD-SDI og 3G-SDI kabel.

Varenr: 600-0234
58,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
-+
ikke på lager (13 dager)
BeskrivelseTeknisk infoSupport
Beskrivelse

Simultaneous translators...

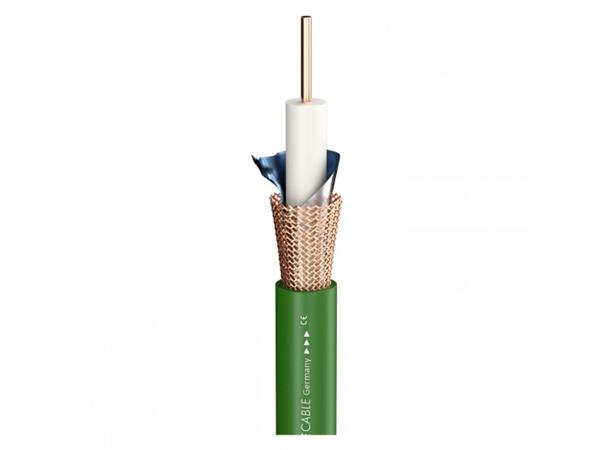

Are genuine multitasking artists who masterfully handle the task of listening, translating and voicing the translated content at the same time. Besides the transmission of the high-resolution 1080p video signal, the HD-SDI transmission also offers the simultaneous embedding of extra data such as 16 picture-synchronous audio channels (AES-3 according to SMPTE 272M and 299M), timecode control data and troubleshooting packages. This saves additional audio or control lines. For the large bandwidths of 3G-SDI (2.97 Gbit/s according to SMPTE 424M) our 3G-SDI cable series is the perfect means of transport. Super low attenuation values of below 30 dBs @ 2.97 Gbit/s are achieved due to the large 1.6 OFC inner conductor with its special gas-injected skin-foam-skin insulation and double shielding. The solid wire version is perfect for professional media installations in TV studios and OB vans, whereas the reelable litz version demonstrates its flexible benefits with mobile transmissions.

Advantages:

  • Long life due to non-aging jacket
  • Constant optimised electrical values owing to intelligent cable design
  • Gas injected skin-foam-skin insulation for optimal damping values and long distances

Application:

  • Digital UHD-SDI video transmission in the professional broadcast/OB van/studio sector, HF technology and antenna construction
  • Professional media-technical permanent installation according to 6G standard
Teknisk info

Produktinformasjon

Application video cable
Application area
  • ELA 100 V
  • Installation
  • Mobile outdoor / indoor
BPVo-Euroclass Fca
Colour green
Colour detailed green
Conductor insulation material Gas Injected-PE
Copper strands (video) 1
Farge Grønn
Impedance 75 Ohm
Inner conductor (video) 1
Jacket material PVC
Jacket Ø (power) 10,2 mm
Materiale PVC
Packing
  • 100 m spool
  • 1000 m spool
  • 500 m spool
Properties
  • 3G-SDI / UHD
  • Analog
  • Digital 75 Ohm
  • HDTV
  • OFC oxygen free copper
  • SDI
Shield. resistance per 1 km 10 Ohm
Shielding (video) Copper braiding + AL / PT foil
Shielding factor [%] 100
Style variant round
Temperature max. 80 °C
Temperature min. [°C] -25
Velocity factor 0,8
Weight per 1 m 101 g
Width 10,2 mm
