SC-VECTOR PLUS 4x 1.2L/4.8DZ 75 Ohm PMB Fleksibel HD kabel.

SC-VECTOR PLUS 4x 1.2L/4.8DZ 75 Ohm PMB

Fleksibel HD kabel.

Varenr: 600-0214-04
251,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
MaterialePUR Master-Blend
SC-VECTOR PLUS 4x 1.2L/4.8DZ 75 Ohm PMB Fleksibel HD kabel.
Ledere
4
7
Vis varianter som liste
-+
ikke på lager (13 dager)
BeskrivelseTeknisk infoSupport
Beskrivelse

XG-SDI in superflex format...

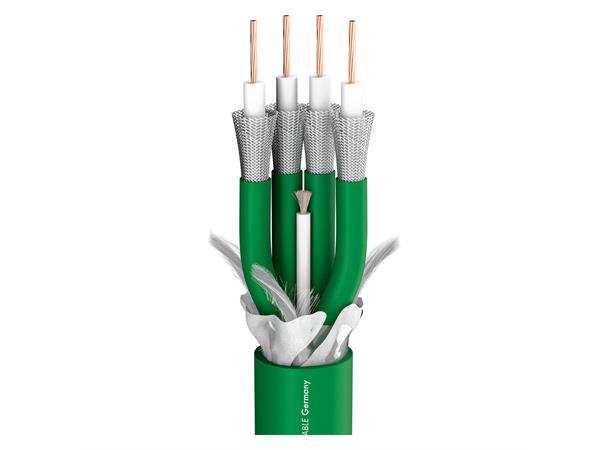

The SC-VECTOR PLUS 1.2L/4.8DZ from SOMMER CABLE is perfectly suitable for the daily mobile use on a drum. The PUR-MASTER-BLEND jacket is highly flexible and also extremely robust. Thus the interior remains mechanically well protected and the HD transmission quality constant. Each HD-SDI conductor is organized in groups of wires and surrounded by a gas-injected PE insulation (incl. Protective lacquer) for optimum damping qualities. A flexible shielding construction is provided by a tight, double CU braid. Multi-DZ is the ideal cable for all G-SDI live transmissions – both indoor and outdoor.

Advantages:

  • Excellent transmission quality due to foam insulation
  • Steadily consistent values
  • UV- and notch-resistant PUR jacket, rodent protection

Application:

  • Double-shielded cable for digital video transmissions and professional video equipment
  • For professional broadcast use
  • Highly flexible and easy to reel
Teknisk info

Produktinformasjon

Application video cable
Application area
  • ELA 100 V
  • Installation
  • Mobile outdoor / indoor
  • Studio / Broadcast
BPVo-Euroclass Fca
Colour green
Colour detailed green
Conductor insulation material Foam/Skin-PE
Ledere 4
Materiale PUR Master-Blend
Name SC-Vector Plus 7 DZ
Packing 100 m, bulk stock
Properties
  • Analog
  • Digital 75 Ohm
  • HDTV
  • OFC oxygen free copper
  • PUR Master Blend
  • SDI
Shielding 2 x Copper braiding tin-plated
Style variant round
