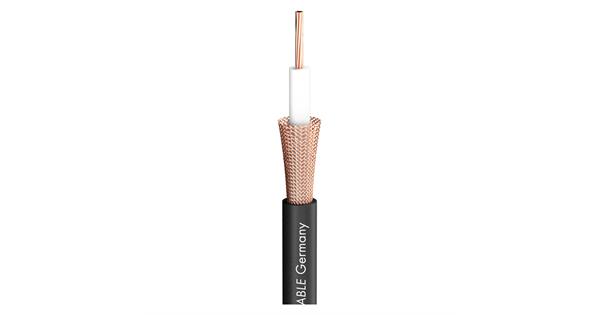

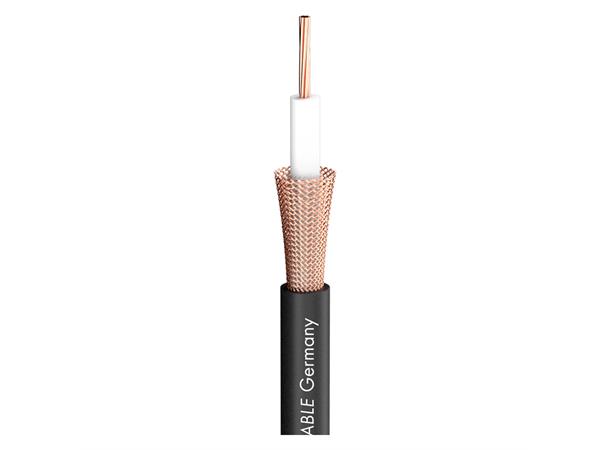

SC-FOCUSLINE PUR Videok. 75 Ohm sort

Ekstra sterk videokabel.

Varenr: 600-0071L

35,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.

20+ på lager

Beskrivelse

video cable SC-Focusline PUR; 1 x 0,67; PUR Ø 5,80 mm; black

Teknisk info

Application	video cable
Application area	ELA 100 V Installation Mobile outdoor / indoor Studio / Broadcast
AWG (video)	22
BPVo-Euroclass	Fca
Capacity wire/electic screen at 1m (video)	55 pF
Colour	black
Colour detailed	black
Conductor insulation material	Foam/Skin-PE
Conductor insulation Ø	3,4 mm
Conductor resistance per 1 km	53 Ohm
Copper strand Ø (video)	0,254 mm
Copper strands (video)	7
Farge	Sort
Height	5,8 mm
Impedance	75 Ohm
Inner conductor (video)	0,35 mm² 1
Inner conductor Ø (video)	0,67 mm
Jacket material	PUR
Jacket Ø	5,8 mm
Materiale	PUR
Packing	100 m spool
Properties	Analog Digital 75 Ohm Halogen-free / LSZH OFC oxygen free copper PUR
Shield. resistance per 1 km	25,4 Ohm
Shielding	Copper braiding
Shielding factor	0,75
Style variant	round
Temperature max.	80 °C
Temperature min.	-30 °C
UV-resistant	Yes
Velocity factor	0,8
Weight per 1 m	30 g
Width	5,8 mm
