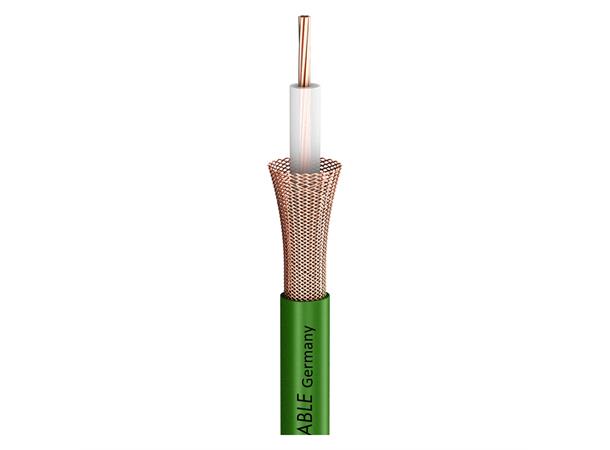

SC-FOCUSLINE L Videok. 75 Ohm gn

Presisjonskabel for video.

Varenr: 600-0054L

19,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.

FargeGrønn

Materiale

20+ på lager

Beskrivelse

video cable SC-Focusline L; 1 x 0,60; PVC Ø 6,20 mm; green

Teknisk info

Application	video cable
Application area	ELA 100 V Installation Mobile outdoor / indoor Studio / Broadcast
AWG (video)	23
BPVo-Euroclass	Fca
Capacity wire/electic screen at 1m (video)	67 pF
Colour	green
Colour detailed	green
Conductor insulation material	PE
Conductor insulation Ø	3,7 mm
Conductor resistance per 1 km	150 Ohm
Copper strand Ø (video)	0,2 mm
Copper strands (video)	7
Farge	Grønn
Fire load per m	0,23 kWh
Height	6,2 mm
Impedance	75 Ohm
Inner conductor (video)	1
Inner conductor Ø (video)	0,6 mm
Jacket material	PVC
Jacket Ø	6,2 mm
Materiale	PVC
Number of Channels (video)	1
Packing	100 m spool 1000 m spool
Properties	Analog Digital 75 Ohm OFC oxygen free copper
Shield. resistance per 1 km	13 Ohm
Shielding	Copper braiding
Shielding factor	0,92
Style variant	round
Temperature max.	70 °C
Temperature min.	-20 °C
Velocity factor	0,66
Weight per 1 m	44 g
Width	6,2 mm
