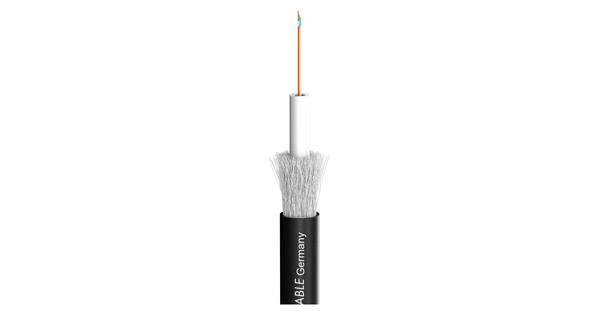

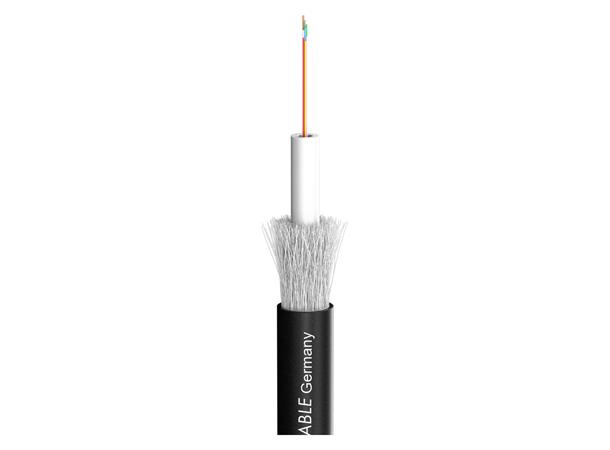

OCTOPUS LWL FR/LSOH 1x8x50/125µm OM3 Installasjon & inn/utendørs.

OCTOPUS LWL FR/LSOH 1x8x50/125µm OM3

Installasjon & inn/utendørs.

Varenr: 590-0511-08-OM3
49,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
KvalitetOM3
OCTOPUS LWL FR/LSOH 1x8x50/125µm OM3 Installasjon & inn/utendørs.
OCTOPUS LWL FR/LSOH 1x8x50/125µm OM4 Installasjon & inn/utendørs.
OCTOPUS LWL FR/LSOH 1x8x50/125µm OM2 Installasjon & inn/utendørs.
Fiber
4
8
Vis varianter som liste
-+
ikke på lager (13 dager)
BeskrivelseTeknisk infoSupport
Beskrivelse

WARP 1...

or to be more precise, you will be able to reach the simple speed of
light with our SC-Octopus-G LWL cable.
The superfine single-mode/monomode fibre with 9/125 μm is ideal for greater running lengths, especially for permanent installation. Data rates of 50 Gbit/s can be transmitted here without the need for a repeater. The light coupling and fibre connection is more delicate than with the multimode fibre, which is why the multimode standard is more frequently used for mobile applications.

For permanent indoor and outdoor installations we recommend the UV-resistant FRNC/LSZH version.

Advantages:

  • Digital signal transmission over long distances
  • Compact, lightweight, robust and metal free
  • Die-electrical glass fibre armouring (rodent protection)
  • Longitudinal water-tight in compliance with IED 60794-1-F5 (PE and FRNC/LSZH version)

Application:

  • High-quality, fast connection for the transmission of digital signals
  • Powerful data network installation in complex buildings (e.g. from office buildings to airport facilities)
  • Indoor and outdoor transmissions with long transmission lengths
Teknisk info

Produktinformasjon

Application Optical fiber
Application area
  • Installation
  • Mobile outdoor / indoor
  • Studio / Broadcast
BPVo-Euroclass Fca
Cladding (fiber) 125 µm
Colour black
Colour detailed black
Construction U-DQ(ZN)BH2Y
Core (fiber) 50 µm
Fiber 8
Fibres 8
Height 7 mm
Jacket material FRNC / LSZH
Jacket Ø 7 mm
Kvalitet OM3
Max. tensile force 1,6 kN
Properties
  • 3G-SDI / UHD
  • FRNC flame retardant
  • Halogen-free / LSZH
Temperature max. 50 °C
Temperature min. -10 °C
UV-resistant Yes
Weight per 1 m 51 g
Width 7 mm
