OCTOPUS fiber PE-Outdoor.12x9/125sort Underjord/utendørs.

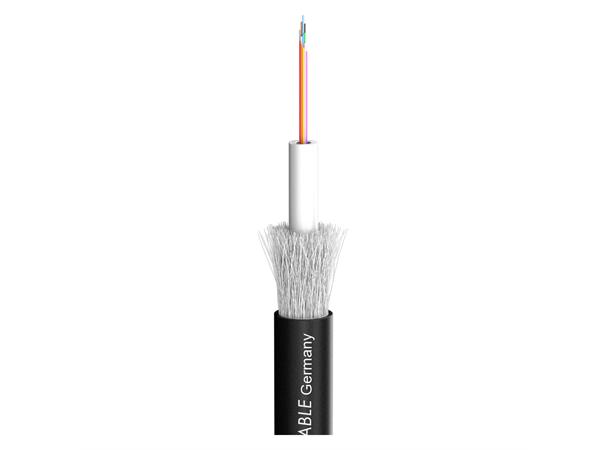

OCTOPUS fiber PE-Outdoor.12x9/125sort

Underjord/utendørs.

Varenr: 590-0421-12
27,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
KvalitetOS2
OCTOPUS fiber PE-Outdoor.12x9/125sort Underjord/utendørs.
Fiber
4
8
Vis varianter som liste
-+
ikke på lager (13 dager)
BeskrivelseTeknisk infoSupport
Beskrivelse

WARP 1...

or to be more precise, you will be able to reach the simple speed of
light with our SC-Octopus-G LWL cable.
The superfine single-mode/monomode fibre with 9/125 μm is ideal for greater running lengths, especially for permanent installation. Data rates of 50 Gbit/s can be transmitted here without the need for a repeater. The light coupling and fibre connection is more delicate than with the multimode fibre, which is why the multimode standard is more frequently used for mobile applications.

The SC-OCTOPUS-G PE version is perfect for underground laying

Advantages:

  • Digital signal transmission over long distances
  • Compact, lightweight, robust and metal free
  • Die-electrical glass fibre armouring (rodent protection)
  • Longitudinal water-tight in compliance with IED 60794-1-F5

Application:

  • High-quality, fast connection for the transmission of digital signals
  • Powerful data network installation in complex buildings (e.g. from office buildings to airport facilities)
  • Indoor and outdoor transmissions with long transmission lengths
Teknisk info

Produktinformasjon

Application Optical fiber
Application area
  • Installation
  • Mobile outdoor / indoor
  • Studio / Broadcast
BPVo-Euroclass Fca
Colour black
Colour detailed black
Construction A/I-DY(ZN)BH2Y
Core (fiber) 9 µm
Fiber 12
Fibres 12
Height 7 mm
Jacket material PE
Jacket Ø 7 mm
Kvalitet OS2
Max. tensile force 1,6 kN
Properties In-ground / burial
Style variant round
Temperature max. 70 °C
Temperature min. -15 °C
UV-resistant Yes
Weight per 1 m 51 g
Width 7 mm
