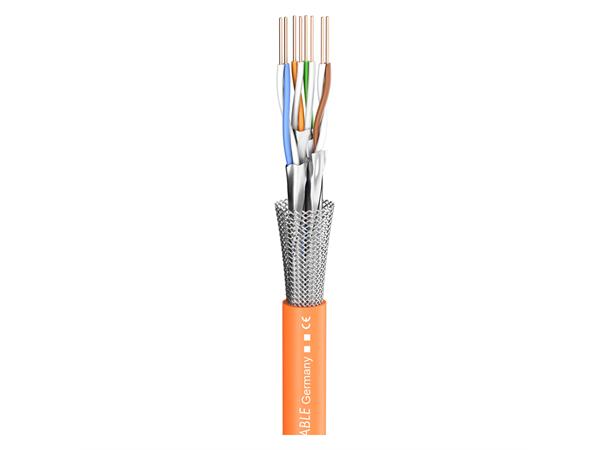

SC-MERCATOR CAT.7 AWG23 orange, FRNC

SC-MERCATOR CAT.7 AWG23 orange, FRNC

Varenr: 580-0255F
25,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
-+
ikke på lager (14 dager)
BeskrivelseTeknisk infoSupport
Beskrivelse

It‘s better to be on the safe side...

for computer cables are produced in such great quantities that due to the tremendous pricing pressure, the quality often falls by the wayside. This results in a poor transmission and an expensive, time-robbing fault tracing. We deliver a high-quality version with a short twist pitch and a durable FRNC jacket. The perfect installation line for the transmission of high Class F bitrates in compliance with the
approbation (FAST ETHERNET, ATM155 Protocols, EN 50173 2ed, EN 50288-1, EN 50288-5-1, IEC 61156-5, ISO/IEC 11801 2ed). It is downward compatible with all existing network protocols CAT.5, CAT.6 und CAT.6a.

Advantages:

  • Short twist pitch and high-quality insulation
  • Great durability due to special jacket compound
  • Length overprint on cable

Application:

  • Connection of computers and media technical equipment
Article number 580-0255FC
Name SC-Mercator CAT.7 CPR-Version
EAN 4049371375283
Properties Digital 110 Ω AES / EBU
Properties Halogen-free / LSZH
Properties FRNC flame retardant
Properties OFC oxygen free copper
Application area Studio / Broadcast
Application area Installation
Application Cat.7
Colour orange
Colour detailed orange
Construction J02YSCH 4x2x0,57mm
Construction (network) J02YSCH 4x2x0,57mm
Jacket material FRNC
Jacket Ø [mm] 7,60
Number of Channels (network) 1
Inner conductor (network) 8
Inner conductor Ø (network) [mm] 0,57
AWG (network) 23
Shielding AL / PT-foil +Copper braiding
Shielding (network) Copper braiding + AL / PT foil
Shielding factor [%] 100
Copper strands (network) 1
Copper strand Ø (network) [mm] 0,57
Conductor insulation material Skin / Foam / Skin-PE
Fire load per m [kWh] 0,17
Style variant round
Packing 500 m spool
Packing 100 m spool
CAT-Type CAT.7
Max. section length [m] 150
Temperature min. [°C] -20
Temperature max. [°C] 70
Width [mm] 7,6
Height [mm] 7,6
Capacity wire/wire at 1m (network) [pF] 43
Capacity wire/wire at 1 ft. (network) [pF] 13,1064
Impedance [Ω] 100
Loop resistance per km [Ω] 145
Loop resistance per 1000 ft. [Ω] 44,196
Max. delay (skew) 15 ns @ 100 MHz
BPVo-Euroclass Dca
