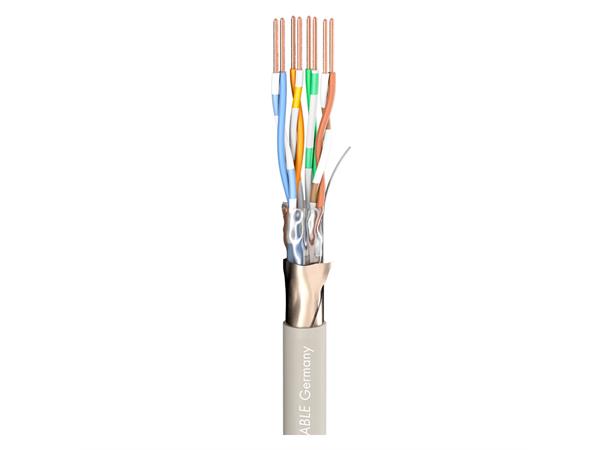

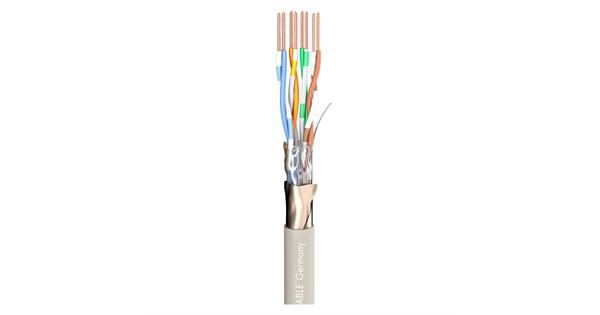

Application
|
Cat.5e
|
|
Application area
|
- Installation
- Mobile outdoor / indoor
- Studio / Broadcast
|
|
AWG (network)
|
26
|
|
BPVo-Euroclass
|
Fca
|
|
Capacity wire/wire at 1m (network)
|
49 pF
|
|
CAT-Type
|
CAT.5e
|
|
Colour
|
grey
|
|
Colour detailed
|
grey
|
|
Conductor insulation material
|
Foam/Skin-PE
|
|
Conductor insulation Ø
|
0,93 mm
|
|
Copper strand Ø (network)
|
0,16 mm
|
|
Copper strands (network)
|
7
|
|
Farge
|
Grå/Tykk
|
|
Fire load per m
|
0,15 kWh
|
|
Height
|
6,1 mm
|
|
Impedance
|
100 Ohm
|
|
Inner conductor (network)
|
8
|
|
Insulation resist. per 1 km
|
2 G Ohm
|
|
Insulation resist. per 1 km (network)
|
2 G Ohm
|
|
Jacket material
|
PVC
|
|
Jacket Ø
|
5,7 mm
|
|
Loop resistance per km
|
170 Ohm
|
|
Materiale
|
PVC
|
|
Max. section length
|
50 m
|
|
Number of Channels (network)
|
1
|
|
Packing
|
|
|
Properties
|
- Digital 110 Ohm AES / EBU
- Halogen-free / LSZH
- OFC oxygen free copper
|
|
Shielding factor
|
1
|
|
Style variant
|
round
|
|
Temperature max.
|
75 °C
|
|
Temperature min.
|
-20 °C
|
|
Weight per 1 m
|
34 g
|
|
Width
|
6,1 mm
|
