SC-Monocat 111C, power, 1-Cat7, 1-DMX DMX + CAT og strøm hybrid SC-Monocat 111C, power, 1-Cat7, 1-DMX DMX + CAT og strøm hybrid

SC-Monocat 111C, power, 1-Cat7, 1-DMX

DMX + CAT og strøm hybrid

Varenr: 502-0141-1
189,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
-+
ikke på lager (14 dager)
BeskrivelseTeknisk infoSupport

Har du husket:

Beskrivelse

Cable abuse without punishment...

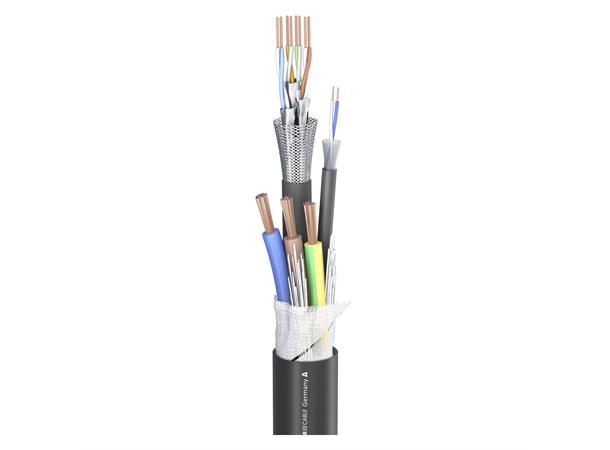

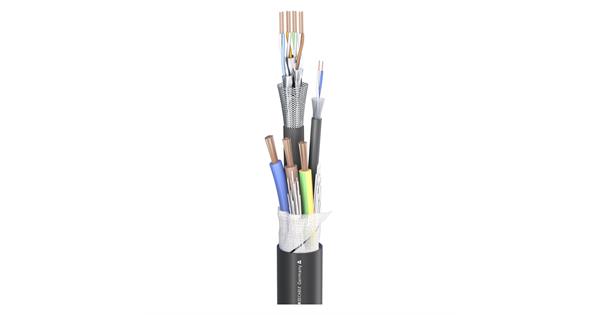

This combination cable consists of an AWG26 CAT.7 element in combination with three individual power conductors as well as an audio/DMX line with 1 x 2 x 0.14 mm² in a very compact 14.5 mm jacket. The cable is ideally suited for mobile applications in the field of sound, lighting and AV technology (active PA systems, projectors, displays, LED walls, lighting technology) as well as for fixed installations where compact and flexible connection technology is required. In combination with the HARTING HAN-ECO system, use with a "one plug" solution for power, signal and data is also possible.

Advantages:

  • Data signal transmission incl. network and audio in one cable
  • Network cable can also be used as control cable

Application:

  • Mobile applications
  • Self powered PA-systems
  • LED walls
  • Displays & Projectors

Article number 502-0141-1
Name SC-Monocat 111C Ed.2
EAN 4049371448567
Properties OFC oxygen free copper
Properties Digital 110 Ω AES / EBU
Properties Analog
Application area Mobile outdoor / indoor
Application area Studio / Broadcast
Application area Installation
Application area Stage / live
Application hybrid cable
Colour black
Colour detailed black

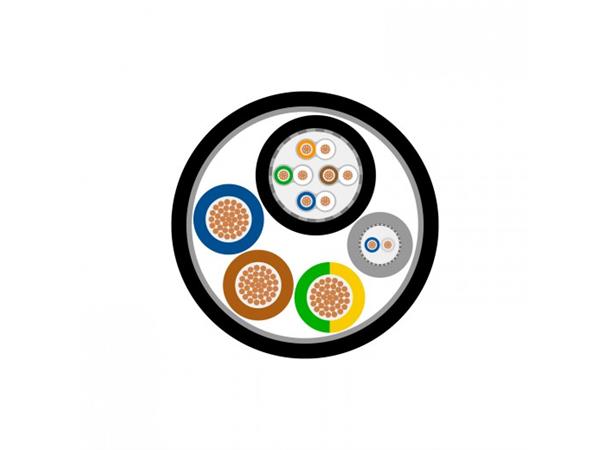

Construction [3LIY3x2,5mm²+1x(4x(2LI2Yx0,14mm²))(ST)CY+1x(2LI2Y0,14mm²)DY]Y
Construction (power) 3 x 2,50 mm²
Construction (AES/EBU, DMX) 01(2LI2Y0,14mm²)DY
Construction (network) 1x(4x(2LI2Yx0,14mm²))(ST)CY
Jacket material PVC
Jacket Ø [mm] 14.50
Jacket Ø (AES/EBU, DMX) [mm] 3,50
Jacket Ø (network) [mm] 6,40
Inner conductor (power) 3
Inner conductor (AES/EBU, DMX) 2
Inner conductor (network) 8
Inner conductor (power) [mm²] 2,50
Inner conductor (AES/EBU, DMX) [mm²] 0,14
Inner conductor (network) [mm²] 0,14
AWG (network) 26
Shielding (AES/EBU, DMX) Copper spiral, tin-plated
Shielding (network) AL / PT-foil + Copper braiding tin-plated
Shielding factor [%] 100
Copper strands (network) 7
Copper strand Ø (network) [mm] 0,16
Conductor insulation material Foam / Skin-PE
Weight per 1 m [g] 260
UV-resistant yes
Fire load per m [kWh] 1,2
Style variant round
Packing bulk stock
CAT-Type CAT.7
Max. section length [m] 100
Temperature min. [°C] -25
Temperature max. [°C] 70
Width [mm] 14,5
[mm] 14,5
Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] 53
Capacity wire/wire at 1m (network) [pF] 44
Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] 93
Surge impedance (AES/EBU, DMX) [Ω] 110
Impedance (network) [Ω] 100
Insulation resist. per 1km (power) [GΩ] 5
Test voltage [V] 2000
Nominal voltage (power) [V] 500
Operating voltage (power) [V] 300
BPVo-Euroclass Fca
Teknisk info

Produktinformasjon

Kanaler 1xCAT+1xDMX+POWER
Materiale PVC
