SC-AQUA MARINEX POWER+ DMX; PUR-SR black DMX og strøm hybrid, halogenfree, UV

SC-AQUA MARINEX POWER+ DMX; PUR-SR black

DMX og strøm hybrid, halogenfree, UV

Varenr: 500-0241AQ
138,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
-+
ikke på lager (12 dager)
BeskrivelseTeknisk infoSupport
Beskrivelse






Water games …

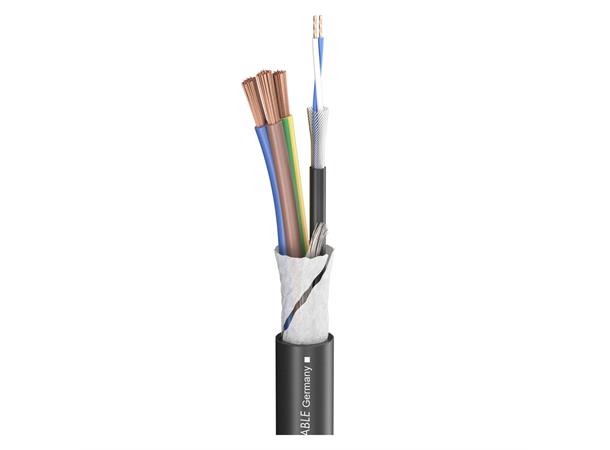

captivate by light signals, programmed with audio synchronization in combination with controlled water fountains. The AQUA MARINEX POWER + DMX is perfectly designed for this purpose, offering 3x1.5mm² power lines and one shielded DMX 512 line which can also be used for digital AES/EBU or analog sound signal transmissions (microphones, active speaker systems etc.). Especially for the lighting control at long-term events in water or snow such as lake night festivals, winter games, Christmas markets, sports events, in theaters or for the demanding OB van technology, the robust AQUA MARINEX is the ideal connection. The special seawater resistant PUR jacket, the compact construction and the interior waterproof protective banding allow a permanent underwater installation down to 20 meters (65.6 ft.) deep.

Advantages:

  • Salt and fresh water resistant outer jacket in black and white
  • Power line and AES / EBU, DMX in a robust cable
  • Transversely watertight due to water-absorbing, pressure-compensating protective banding
  • Halogen-free, UV and microbe-resistant
  • Cold-flexible and reelable
  • Chlorine water resistant

Application:

  • Permanent installation in water depths up to 20 m
  • Demanding outdoor installation (e.g. with long-time events)
  • Installation and usage near the coast and in boat-building
  • In- and outdoor installation in leisure parks and water oases
  • Control of DMX-light mixing board incl. Power supply

Teknisk info

Produktinformasjon

Application DMX & Power
Application area
  • Installation
  • Mobile outdoor / indoor
  • Stage / live
  • Studio / Broadcast
AWG (AES/EBU, DMX) 25
AWG (power) 15
BPVo-Euroclass Fca
Capac. cond./cond. per 1 m (audio) 52 pF
Capac. cond./shield. per 1 m (AES/EBU, DMX) 89 pF
Colour black
Colour detailed black
Conductor insulation material (AES/EBU, DMX) PVC
Conductor insulation Ø (AES/EBU, DMX) 1,15 mm
Conductor insulation Ø (power) 2,8 mm
Copper strand Ø (AES/EBU, DMX) 0,07 mm
Copper strand Ø (power) 0,25 mm
Copper strands (AES/EBU, DMX) 36
Copper strands (power) 28
Fire load per m 0,54 kWh
Height 9,5 mm
Inner conductor (AES/EBU, DMX)
  • 0,14 mm²
  • 2
Inner conductor (power)
  • 1,5 mm²
  • 3
Inner conductor Ø (power) 1,38 mm
Insulation resist. per 1 km (AES/EBU, DMX) 0,1 G Ohm
Jacket material PVC
Jacket Ø 9,5 mm
Kanaler 1xDMX+POWER
Materiale Kompakt PVC
Name SC-Monolith 1 compact
Number of Channels (AES/EBU, DMX) 1
Number of Channels (power) 1
Packing bulk stock
Properties
  • Analog
  • Digital 110 Ohm AES / EBU
  • OFC oxygen free copper
Shielding (AES/EBU, DMX) Copper spiral, tin-plated
Shielding (audio) Copper spiral, tin-plated
Shielding factor 0,9
Signal transmission symmetrical
Style variant round
Surge impedance (AES/EBU, DMX) 110 Ohm
Surge impedance (audio) 110 Ohm
Temperature max. 70 °C
Temperature min. -30 °C
Type AES/EBU DMX512
UV-resistant Yes
Weight per 1 m 144 g
Width 9,5 mm
