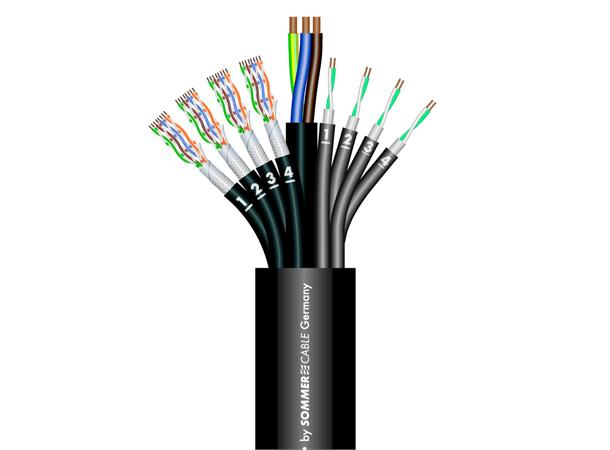

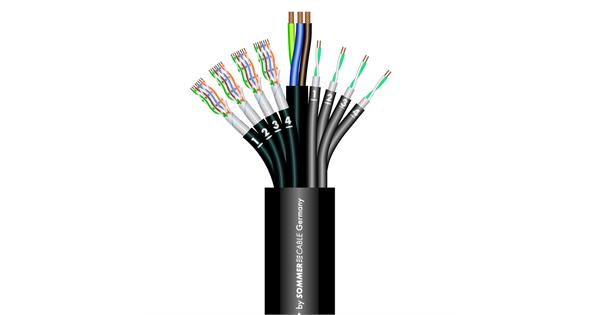

SC-MONOCAT POWER 414/ sort3x2,5mm²P + DMX + CAT og strøm hybrid

SC-MONOCAT POWER 414/ sort3x2,5mm²P +

DMX + CAT og strøm hybrid

Varenr: 500-0191-4
517,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
Kanaler4xCAT+4xDMX+POWER
SC-MONOCAT POWER 414/ sort3x2,5mm²P + DMX + CAT og strøm hybrid
Materiale
PVC
Vis varianter som liste
-+
100+ på lager
BeskrivelseTeknisk infoSupport
Beskrivelse

Thicker and bigger …

Apart from the combi lines 110C (CAT+Power), 111C (CAT+Power+DMX), 202 (2xCAT+2xDMX) and 212(2xCAT+2xDMX+Power) we also offer the extended variants SC-MONOCAT POWER 414 and 810. In addition to the power line, the SC-MONOCAT POWER 414 has four CAT and four DMX lines each, the SC-MONOCAT POWER 810 with its super robust, notch and cold resistant PUR jacket has eight CAT lines.

Advantages:

  • LAN signal transmission incl. mains supply in one cable
  • LAN cable also usable as an additional control line
  • LAN line suitable for audio transmission

Application:

  • Mobile applications
  • Control of DMX lighting consoles
  • Analogue + digital audio multipair with LAN and power supply
  • Permanent Installation
Teknisk info

Produktinformasjon

Application hybrid cable
Application area
  • Installation
  • Mobile outdoor / indoor
  • Stage / live
  • Studio / Broadcast
BPVo-Euroclass Fca
Capacity wire/wire at 1m (network) 44 pF
Colour black
Colour detailed black
Conductor insulation material Foam/Skin-PE
Fire load per m 3,25 kWh
Height 27 mm
Impedance (network) 100 Ohm
Inner conductor (AES/EBU, DMX)
  • 0,25 mm²
  • 2
Inner conductor (network) 8
Inner conductor (power)
  • 2,5 mm²
  • 3
Inner conductor Ø (network) 0,51 mm
Insulation resist. per 1km (power) 5 G Ohm
Jacket material PVC
Jacket Ø 27 mm
Kanaler 4xCAT+4xDMX+POWER
Materiale PVC
Max. section length 110 m
Nominal voltage (power) 500 V
Number of Channels (network) 4
Number of Channels (power) 1
Operating voltage (power) 300 V
Packing bulk stock
Properties
  • Analog
  • Digital 110 Ohm AES / EBU
  • OFC oxygen free copper
Shielding (AES/EBU, DMX) Copper braiding tin-plated
Shielding (network) AL / PT-foil + Copper braiding tin-plated
Shielding factor 1
Signal transmission symmetrical
Style variant round
Temperature max. 75 °C
Temperature min. -30 °C
Type AES/EBU DMX512
UV-resistant Yes
Weight per 1 m 850 g
Width 27 mm
