Application
|
hybrid cable
|
|
Application area
|
- Installation
- Mobile outdoor / indoor
- Stage / live
- Studio / Broadcast
|
|
BPVo-Euroclass
|
Fca
|
|
Capacity wire/wire at 1m (network)
|
44 pF
|
|
Colour
|
black
|
|
Colour detailed
|
black
|
|
Conductor insulation material
|
Foam/Skin-PE
|
|
Fire load per m
|
2,38 kWh
|
|
Height
|
21,5 mm
|
|
Impedance (network)
|
100 Ohm
|
|
Inner conductor (AES/EBU, DMX)
|
|
|
Inner conductor (network)
|
8
|
|
Inner conductor (power)
|
|
|
Inner conductor Ø (network)
|
0,51 mm
|
|
Insulation resist. per 1km (power)
|
5 G Ohm
|
|
Jacket material
|
PVC
|
|
Jacket Ø
|
21,5 mm
|
|
Kanaler
|
2xCAT+2xDMX+POWER
|
|
Materiale
|
PVC
|
|
Max. section length
|
110 m
|
|
Name
|

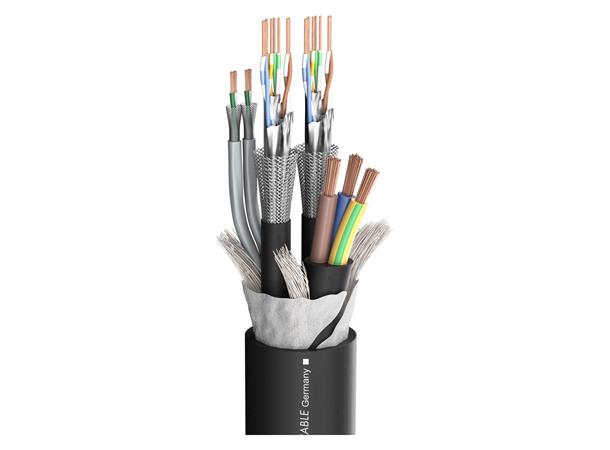

SC-Monocat Power 212
|
|
Nominal voltage (power)
|
300 V
|
|
Number of Channels (AES/EBU, DMX)
|
2
|
|
Number of Channels (network)
|
2
|
|
Operating voltage (power)
|
300 V
|
|
Packing
|
bulk stock
|
|
Properties
|
- Analog
- Digital 110 Ohm AES / EBU
- OFC oxygen free copper
|
|
Shielding (AES/EBU, DMX)
|
Copper spiral, tin-plated
|
|
Shielding (network)
|
PiMF + tinned copper braid
|
|
Shielding factor
|
1
|
|
Signal transmission
|
symmetrical
|
|
Style variant
|
round
|
|
Temperature max.
|
75 °C
|
|
Temperature min.
|
-30 °C
|
|
Type
|
AES/EBU DMX512
|
|
UV-resistant
|
Yes
|
|
Weight per 1 m
|
470 g
|
|
Width
|
21,5 mm
|
