Application
|
hybrid cable
|
|
Application area
|
- Installation
- Mobile outdoor / indoor
- Stage / live
- Studio / Broadcast
|
|
BPVo-Euroclass
|
Fca
|
|
Capacity wire/wire at 1m (network)
|
44 pF
|
|
Colour
|
black
|
|
Colour detailed
|
black
|
|
Conductor insulation material
|
Foam/Skin-PE
|
|
Fire load per m
|
1,01 kWh
|
|
Height
|
15,6 mm
|
|
Impedance (network)
|
100 Ohm
|
|
Inner conductor (AES/EBU, DMX)
|
|
|
Inner conductor (network)
|
|
|
Jacket material
|
PVC
|
|
Jacket Ø
|
15,6 mm
|
|
Kanaler
|
2xCAT+2xDMX
|
|
Materiale
|
PVC
|
|
Max. section length
|
100 m
|
|

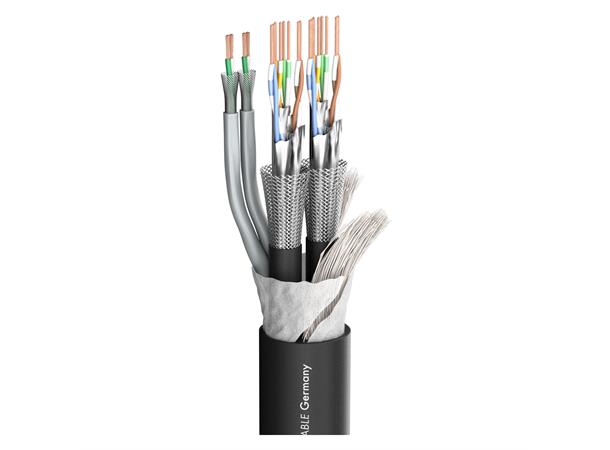

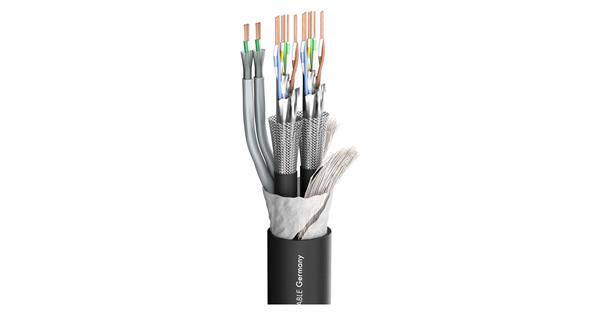

Name
|
SC-Monocat 202
|
|
Number of Channels (AES/EBU, DMX)
|
2
|
|
Packing
|
bulk stock
|
|
Properties
|
- Analog
- OFC oxygen free copper
|
|
Shielding (AES/EBU, DMX)
|
Copper spiral, tin-plated
|
|
Shielding (network)
|
AL / PT-foil + Copper braiding tin-plated
|
|
Shielding factor
|
1
|
|
Signal transmission
|
symmetrical
|
|
Style variant
|
round
|
|
Temperature max.
|
75 °C
|
|
Temperature min.
|
-20 °C
|
|
Type
|
AES/EBU DMX512
|
|
UV-resistant
|
Yes
|
|
Weight per 1 m
|
380 g
|
|
Width
|
15,6 mm
|
