SC-Monocat 121C; power: 5 x 2,50 mm²x CA DMX + CAT 7 og strøm hybrid

SC-Monocat 121C; power: 5 x 2,50 mm²x CA

DMX + CAT 7 og strøm hybrid

Varenr: 500-0131-1
272,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
-+
ikke på lager (14 dager)
BeskrivelseTeknisk infoSupport
Beskrivelse






For every situation ...

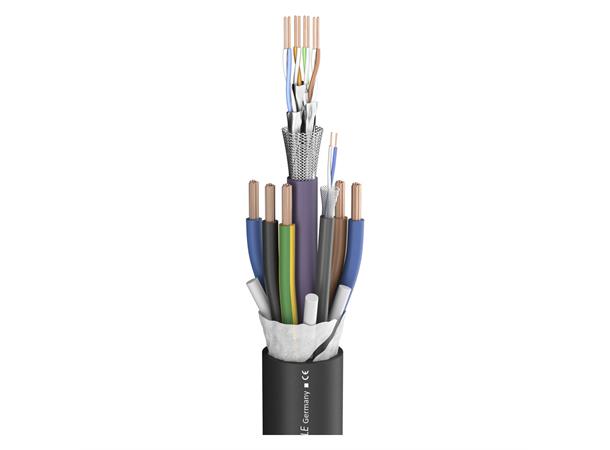

our MonoCAT product range has a hybrid cable for a multitude of different combinations of network, signal and power lines. Digital sound, lighting or video control desks can thus be connected with just one plugging step. This is also very interesting for applications in OB vans or installations and conferences. Our latest scion SC-MONOCAT 121C contains both a CAT.7 and a DMX line plus 5 individual 2.5 mm² power wires for a maximum of two phases (two outer conductors, two neutral conductors and one ground wire). The cable has been developed for customers who require a bigger power source for active speakers or large spotlight groups. Despite its many features, the cable has an outer diameter of just 17.3 mm and is ideal for use with HARTING® HAN-ECO connectors as well as the cabling of line array systems of the manufacturers db technologies and RCF.

Advantages:

  • Network signal transmission incl. 2-phase mains in one cable
  • CAT.7 internal structure with optimum shielding
  • Ultra-compact cable structure

Application:

  • Signal and voltage supply for active speakers and multifunctional spotlights
  • Perfectly suitable for line array systems from db technologies and RCF

Teknisk info

Produktinformasjon

Application hybrid cable
Application area
  • Installation
  • Mobile outdoor / indoor
  • Stage / live
  • Studio / Broadcast
BPVo-Euroclass Fca
Capacity wire/wire at 1m (network) 44 pF
Colour black
Colour detailed black
Conductor insulation material Foam/Skin-PE
Fire load per m 3,25 kWh
Height 27 mm
Impedance (network) 100 Ohm
Inner conductor (AES/EBU, DMX)
  • 0,25 mm²
  • 2
Inner conductor (network) 8
Inner conductor (power)
  • 2,5 mm²
  • 3
Inner conductor Ø (network) 0,51 mm
Insulation resist. per 1km (power) 5 G Ohm
Jacket material PVC
Jacket Ø 27 mm
Kanaler 4xCAT+4xDMX+POWER
Materiale PVC
Max. section length 110 m
Nominal voltage (power) 500 V
Number of Channels (network) 4
Number of Channels (power) 1
Operating voltage (power) 300 V
Packing bulk stock
Properties
  • Analog
  • Digital 110 Ohm AES / EBU
  • OFC oxygen free copper
Shielding (AES/EBU, DMX) Copper braiding tin-plated
Shielding (network) AL / PT-foil + Copper braiding tin-plated
Shielding factor 1
Signal transmission symmetrical
Style variant round
Temperature max. 75 °C
Temperature min. -30 °C
Type AES/EBU DMX512
UV-resistant Yes
Weight per 1 m 850 g
Width 27 mm
