MERIDIAN SP240 FG Speakerabel gr

Perfekt til installasjon

Varenr: 440-0056FG

113,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.

FargeGrå

ikke på lager (13 dager)

Beskrivelse

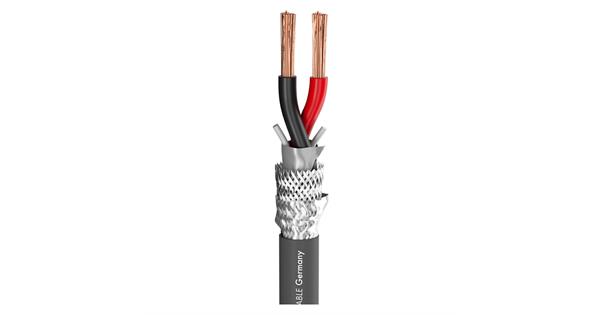

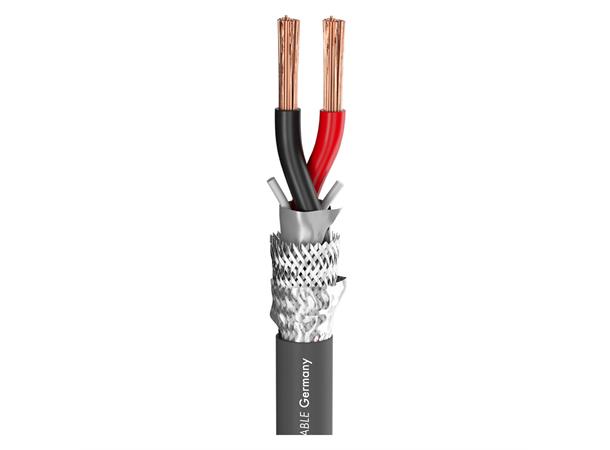

Speaker Cable Meridian Install SP240; 2 x 4,00 mm²; FRNC, shielded Ø 10,10 mm; dark grey

Teknisk info

Application	Installation cable Speaker Cable
Application area	ELA 100 V Installation Studio / Broadcast
AWG (audio)	11
BPVo-Euroclass	Fca
Capac. cond./cond. per 1 m (audio)	125 pF
Colour	grey
Colour detailed	dark grey
Conductor insulation Ø	4,2 mm
Conductor resistance per 1 km	4,5 Ohm
Copper strand Ø (audio)	0,30 mm
Copper strands (audio)	56
Farge	Grå
Fire load per m	0,54 kWh
Height	10,1 mm
Inner conductor (audio)	4 mm²
Inner conductor Ø (audio)	2,26 mm
Insulation resist. per 1 km	0,005 G Ohm
Insulation resist. per 1 km (audio)	0,005 G Ohm
Jacket material	FRNC, shielded
Jacket Ø	10,1 mm
Number of Channels (audio)	1
Packing	100 m spool 500 m spool
Properties	Analog FRNC flame retardant Halogen-free / LSZH OFC oxygen free copper
Style variant	round
Temperature max.	70 °C
Temperature min.	-30 °C
Tverrsnitt	2 x 4.0 mm²
Weight per 1 m	150 g
Width	10,1 mm
