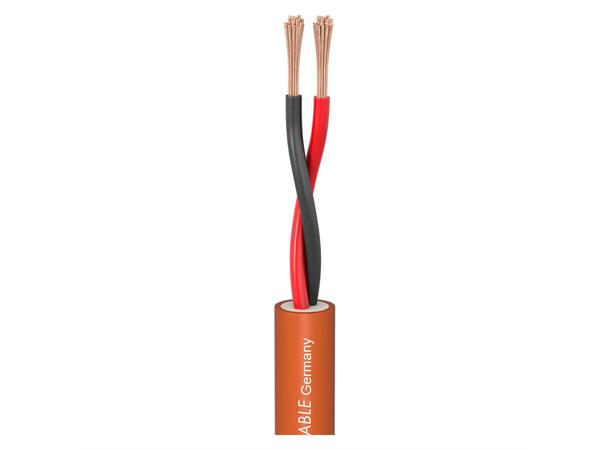

MERIDIAN SP215 E30 Speaker./orange

Solid høyttalerkabel.

Varenr: 415-0055E30

63,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.

Tverrsnitt1 x 1.5 mm², E30

Materiale

ikke på lager (13 dager)

Beskrivelse

Speaker Cable Meridian Install SP215; 2 x 1,50 mm²; FRNC, Silikon Ø 9,00 mm; orange

Teknisk info

Application	Installation cable Speaker Cable
Application area	ELA 100 V Installation Studio / Broadcast
AWG (audio)	16
BPVo-Euroclass	Fca
Capac. cond./cond. per 1 m (audio)	150 pF
Colour	orange
Colour detailed	orange
Conductor insulation Ø	2,8 mm
Conductor resistance per 1 km	13 Ohm
Copper strand Ø (audio)	0,25 mm
Copper strands (audio)	30
Fire load per m	0,29 kWh
Height	9 mm
Inner conductor (audio)	1,5 mm² 2
Inner conductor Ø (audio)	1,38 mm
Insulation resist. per 1 km	0,005 G Ohm
Insulation resist. per 1 km (audio)	0,005 G Ohm
Jacket material	FRNC, Silikon
Jacket Ø	9 mm
Materiale	SIL
Packing	100 m spool 500 m spool
Properties	Analog FRNC flame retardant Halogen-free / LSZH OFC oxygen free copper Protection class E30
Style variant	round
Temperature max.	90 °C
Temperature min.	-30 °C
Tverrsnitt	1 x 1.5 mm², E30
Type	Høyttalerkabel
Weight per 1 m	120 g
Width	9 mm
