Application
|

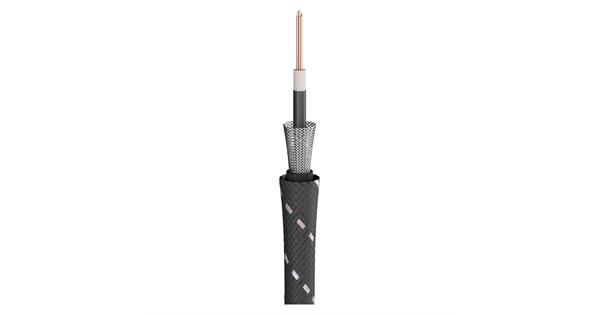

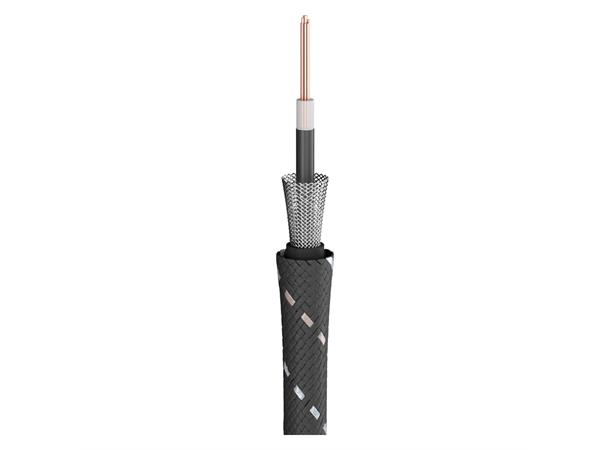

Instrument Cable
|
|
Application area
|
- Mobile outdoor / indoor
- Stage / live
- Studio / Broadcast
|
|
AWG (audio)
|
20
|
|
BPVo-Euroclass
|
Fca
|
|
Capac. cond./shield. per 1 m (audio)
|
78 pF
|
|
Colour
|
|
|
Colour detailed
|
black-white
|
|
Conductor insulation material
|
Foam/Skin-PE
|
|
Conductor insulation Ø
|
2,2 mm
|
|
Conductor resistance per 1 km
|
36 Ohm
|
|
Copper strand Ø (audio)
|
0,15 mm
|
|
Copper strands (audio)
|
28
|
|
Farge
|
Sort-Hvit
|
|
Fire load per m
|
0,26 kWh
|
|
Height
|
6,5 mm
|
|
Inner conductor (audio)
|
1
|
|
Inner conductor Ø (audio)
|
0,80 mm
|
|
Insulation resist. per 1 km
|
0,010 G Ohm
|
|
Insulation resist. per 1 km (audio)
|
0,010 G Ohm
|
|
Jacket material
|
PVC + fabric
|
|
Jacket Ø
|
6,5 mm
|
|
Materiale
|
PVC
|
|
Number of Channels (audio)
|
1
|
|
Packing
|
100 m spool
|
|
Properties
|
- Analog
- OFC oxygen free copper
|
|
Shielding
|
Copper spiral tin-plated + semiconductor
|
|
Shielding factor
|
1
|
|
Signal transmission
|
asymmetrical
|
|
Style variant
|
round
|
|
Temperature max.
|
80 °C
|
|
Temperature min.
|
-40 °C
|
|
Weight per 1 m
|
54 g
|
|
Width
|
6,5 mm
|
