SC-SPIRIT Instrumentenc./sort Fleksibel instrumentkabel.

SC-SPIRIT Instrumentenc./sort

Fleksibel instrumentkabel.

Varenr: 300-0051
34,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
FargeSort
SC-SPIRIT Instrumentenc./sort Fleksibel instrumentkabel.
Materiale
Vis varianter som liste
-+
ikke på lager (13 dager)
BeskrivelseTeknisk infoSupport
Beskrivelse

Like a lasso...

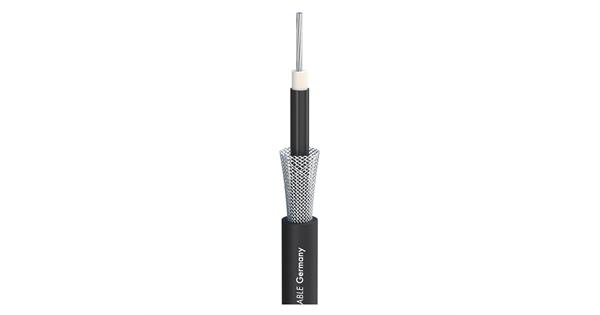

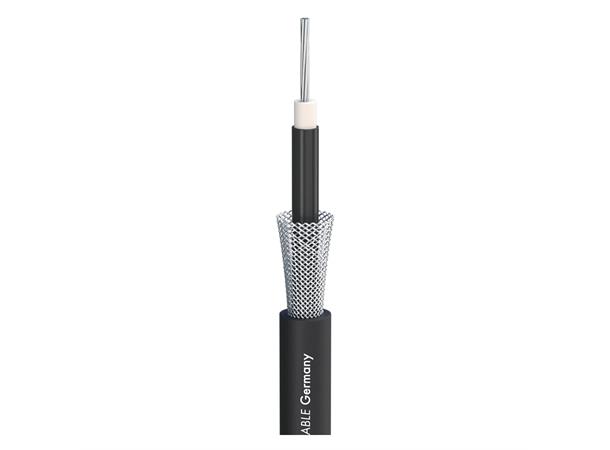

By the guitarists tossing the cables around. That's why this of all cables must be particularly tread resistant and have an elaborate construction. At first musicians tend to spend big money until they finally have to realize exasperatedly that the newly purchased low-cost cable may at best be used as an average short-wave receiver or even brings the overall sound image of the high-priced instrument to crumble. We have refrained from cheapo products and offer a top-quality cable at a fair price. The SC-Spirit has a thick insulation between wire and screen. This improves the capacitive values and ensures a loss-free reproduction of the highs even with longer cables. To avoid crackling and hum interferences, we use a special conductive carbon screen and a braided Cu shield. Please make sure when soldering that the carbon screen does not make any contact with the inner conductor. Your audience will be amazed at the sound of this cable!

Advantages:

  • Incredibly punchy and clear sound with bass, guitar and keyboard due to our
    special litz stranding and a wire cross-section of 0,50 mm²
  • Dual shielding by a combination of a copper mesh screen plus conductive
    carbon screen
  • Low-loss transmission due to low capacitance
  • Very flexible and easy to reel because of its fine single litz design
  • Extremely durable and sturdy due to a special high-quality PVC jacket compound
  • Strain relief and good sleeve support due to thick PVC jacket

Application:

  • High-quality guitar cable for studio and stage
  • Unbalanced cable for keyboards, samplers, mixing desks etc.
  • Connection lead for CD/DVD player/recorder
Teknisk info

Produktinformasjon

Application Instrument Cable
Application area
  • Installation
  • Mobile outdoor / indoor
  • Stage / live
  • Studio / Broadcast
AWG (audio) 20
BPVo-Euroclass Fca
Capac. cond./shield. per 1 m (audio) 78 pF
Colour black
Colour detailed black
Conductor insulation material Foam/Skin-PE
Conductor insulation Ø 3,1 mm
Conductor resistance per 1 km 39 Ohm
Copper strand Ø (audio) 0,18 mm
Copper strands (audio) 19
Farge Sort
Fire load per m 0,26 kWh
Height 7 mm
Inner conductor (audio) 1
Inner conductor Ø (audio) 0,80 mm
Insulation resist. per 1 km 1 G Ohm
Insulation resist. per 1 km (audio) 1 G Ohm
Jacket material PVC
Jacket Ø 7 mm
Materiale PVC
Number of Channels (audio) 1
Packing 100 m spool
Properties
  • Analog
  • OFC oxygen free copper
Shielding Copper spiral tin-plated + semiconductor
Shielding factor 1
Signal transmission asymmetrical
Style variant round
Temperature max. 70 °C
Temperature min. -30 °C
UV-resistant Yes
Weight per 1 m 66 g
Width 7 mm
