SC-SYMBIOTIC Microk. 3x0,20qmm Tynn og lett kabel.

SC-SYMBIOTIC Microk. 3x0,20qmm

Tynn og lett kabel.

Varenr: 200-0601H3
44,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
-+
ikke på lager (13 dager)
BeskrivelseTeknisk infoSupport
Beskrivelse

Bet that...

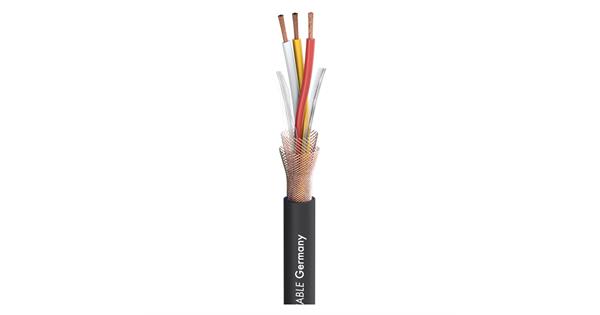

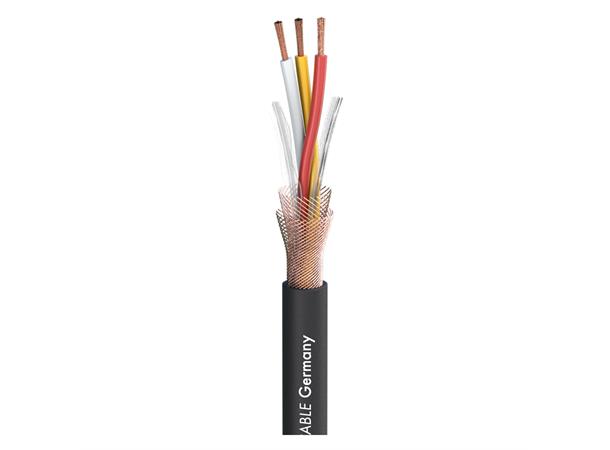

you can hear this cable on the radio? We’ve added the SC-Symbiotic to our range to meet the demands of our ambitious broadcast and sound engineers. They appreciate the extremely dense dual helical mesh screen of oxygen-free copper, the small diameter and the impressive flexibility we have achieved with the extremely fine strand construction of 102 x 0,05 mm single wires. The SC-Symbiotic was custom-designed according to specifications set forth by broadcasting stations all over the world. Because of its minimal weight the SC-Symbiotic is also ideal for use with gooseneck microphones.

Advantages:

  • Designed according to German radio and BBC specifications
  • Extremely flexible due to the fine strand construction (102 x0,05 mm single wires)
  • Small diameter for inconspicuous installation
  • Perfectly shielded against RF interference

Application:

  • Professional radio, TV and studio technology
  • Permanent indoor and outdoor installation in public buildings
  • Ideal for use with gooseneck microphones
Teknisk info

Produktinformasjon

Application Microphone Cable
Application area
  • Installation
  • Mobile outdoor / indoor
  • Studio / Broadcast
AWG (audio) 24
BPVo-Euroclass Fca
Capac. cond./cond. per 1 m (audio) 95 pF
Capac. cond./shield. per 1 m (audio) 130 pF
Colour black
Colour detailed black
Conductor insulation material PE
Conductor insulation Ø 1,3 mm
Conductor resistance per 1 km 94 Ohm
Copper strand Ø (audio) 0,05 mm
Copper strands (audio) 102
Farge Sort
Fire load per m 0,11 kWh
Height 5,2 mm
Inner conductor (audio)
  • 0,20 mm²
  • 3
Insulation resist. per 1 km 0,2 G Ohm
Insulation resist. per 1 km (audio) 0,2 G Ohm
Jacket material TPE
Jacket Ø 5,2 mm
Materiale PVC 3-wire
Number of Channels (audio) 1
Packing
  • 100 m spool
  • 500 m spool
Properties
  • Analog
  • OFC oxygen free copper
Shield. resistance per 1 km 25 Ohm
Shielding Double copper spiral, counter-rotating
Shielding factor 1
Signal transmission symmetrical
Style variant round
Temperature max. 70 °C
Temperature min. -30 °C
Type Mikrofonkabel
UV-resistant Yes
Weight per 1 m 38 g
Width 5,2 mm
