Application
|

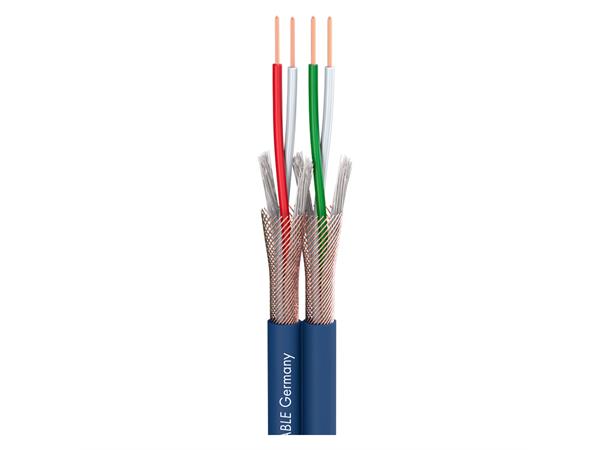

Patch & Microphone Cable
|
|
Application area
|
- Installation
- Stage / live
- Studio / Broadcast
|
|
AWG (AES/EBU, DMX)
|
24
|
|
BPVo-Euroclass
|
Fca
|
|
Capac. cond./cond. per 1 m (AES/EBU, DMX)
|
70 pF
|
|
Capac. cond./shield. per 1 m (AES/EBU, DMX)
|
125 pF
|
|
Colour
|
blue
|
|
Colour detailed
|
blue
|
|
Conductor insulation material
|
Foam/Skin-PE
|
|
Conductor insulation Ø
|
1,3 mm
|
|
Conductor resistance per 1 km
|
90 Ohm
|
|
Copper strand Ø (AES/EBU, DMX)
|
0,10 mm
|
|
Copper strands (AES/EBU, DMX)
|
28
|
|
Farge
|
Blå
|
|
Fire load per m
|
0,18 kWh
|
|
Height
|
4,5 mm
|
|
Impedance
|
110 Ohm
|
|
Inner conductor (AES/EBU, DMX)
|
|
|
Insulation resist. per 1 km
|
0,5 G Ohm
|
|
Insulation resist. per 1 km (AES/EBU, DMX)
|
0,5 G Ohm
|
|
Jacket material
|
S-PVC
|
|
Materiale
|
PVC
|
|
Number of Channels (AES/EBU, DMX)
|
2
|
|
Packing
|
100 m spool
|
|
Properties
|
- Analog
- Digital 110 Ohm AES / EBU
- OFC oxygen free copper
|
|
Shield. resistance per 1 km
|
36 Ohm
|
|
Shielding
|
Copper spiral sleeve
|
|
Shielding factor
|
0,95
|
|
Signal transmission
|
symmetrical
|
|
Style variant
|
twin
|
|
Temperature max.
|
70 °C
|
|
Temperature min.
|
-30 °C
|
|
Type
|
Mikrofonkabel
|
|
Weight per 1 m
|
49 g
|
|
Width
|
9,2 mm
|
