Application
|

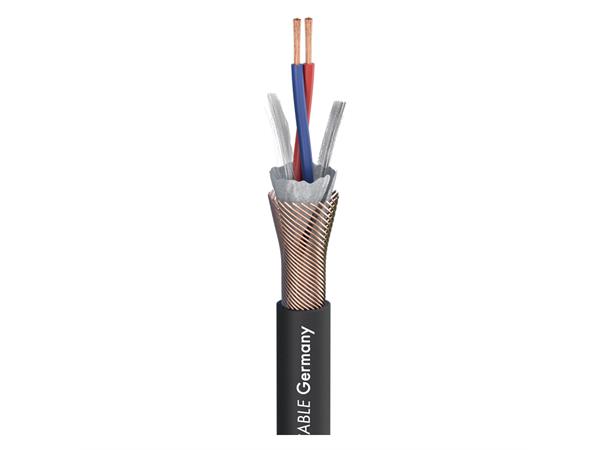

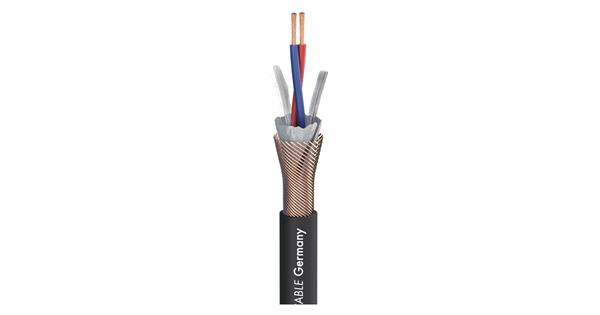

Microphone Cable
|
|
Application area
|
- Installation
- Mobile outdoor / indoor
- Stage / live
|
|
AWG (audio)
|
26
|
|
BPVo-Euroclass
|
Fca
|
|
Capac. cond./cond. per 1 m (audio)
|
48 pF
|
|
Capac. cond./shield. per 1 m (audio)
|
120 pF
|
|
Colour
|
black
|
|
Colour detailed
|
black
|
|
Conductor insulation material
|
Foam/Skin-PE
|
|
Conductor insulation Ø
|
1,2 mm
|
|
Conductor resistance per 1 km
|
130 Ohm
|
|
Copper strand Ø (audio)
|
0,1 mm
|
|
Copper strands (audio)
|
18
|
|
Farge
|
Sort
|
|
Fire load per m
|
0,22 kWh
|
|
Height
|
5,8 mm
|
|
Impedance
|
95 Ohm
|
|
Inner conductor (audio)
|
2
|
|
Inner conductor Ø (audio)
|
0,42 mm
|
|
Insulation resist. per 1 km
|
1 G Ohm
|
|
Insulation resist. per 1 km (audio)
|
1 G Ohm
|
|
Jacket material
|
PVC
|
|
Jacket Ø
|
5,8 mm
|
|
Materiale
|
PVC
|
|
Number of Channels (audio)
|
1
|
|
Packing
|
|
|
Properties
|
- Analog
- Digital 110 Ohm AES / EBU
- OFC oxygen free copper
|
|
Shield. resistance per 1 km
|
30 Ohm
|
|
Shielding
|
Copper spiral shielding with 0.10 mm indiv. strands
|
|
Shielding factor
|
0,95
|
|
Signal transmission
|
symmetrical
|
|
Style variant
|
round
|
|
Surge impedance (audio)
|
110 Ohm
|
|
Temperature max.
|
70 °C
|
|
Temperature min.
|
-20 °C
|
|
Type
|
Mikrofonkabel
|
|
UV-resistant
|
Yes
|
|
Weight per 1 m
|
50 g
|
|
Width
|
5,8 mm
|
