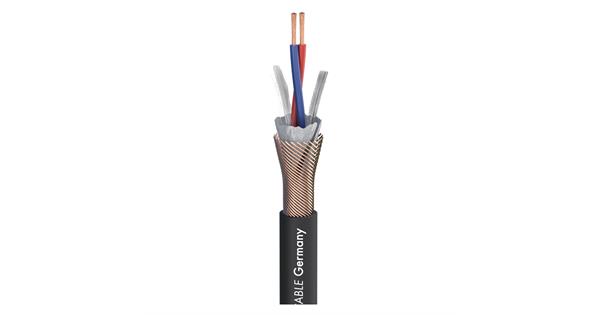

Cable SC-Scuba 14; 2 x 0,14 mm²; PVC Ø 3 SC-Scuba 14 HIGHFLEX

Cable SC-Scuba 14; 2 x 0,14 mm²; PVC Ø 3

SC-Scuba 14 HIGHFLEX

Varenr: 200-0311
19,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
-+
ikke på lager (13 dager)
BeskrivelseTeknisk infoSupport
Beskrivelse

the new SC-Scuba 14 HIGHFLEX will be right by your side. It is very thin, space-saving, flexible and ideally suited for connectors with a small diameter, e.g. LEMO patchboards, mini jacks, RCA etc. (and thus perfect for patch cables) and rack cabling. Their diameter and wire construction has been designed according to common broadcasting standards and a dense copper mesh screen with90 % shielding coverage protects the cable from interference. For reasons of clarity we offer the SC-Scuba 14 HIGHFLEX in five different jacket colors.

Advantages:

  • Very thin, high tensile strength and flexibility
  • Available in five different colours
  • Good shielding due to the dense Cu mesh screen
  • Affordable price

Application:

  • Patch cabling (LEMO), gooseneck microphone cable
  • Home recording
  • Rack and console cabling

Teknisk info

Produktinformasjon

Application Microphone Cable
Application area
  • Installation
  • Mobile outdoor / indoor
  • Stage / live
AWG (audio) 26
BPVo-Euroclass Fca
Capac. cond./cond. per 1 m (audio) 48 pF
Capac. cond./shield. per 1 m (audio) 120 pF
Colour black
Colour detailed black
Conductor insulation material Foam/Skin-PE
Conductor insulation Ø 1,2 mm
Conductor resistance per 1 km 130 Ohm
Copper strand Ø (audio) 0,1 mm
Copper strands (audio) 18
Farge Sort
Fire load per m 0,22 kWh
Height 5,8 mm
Impedance 95 Ohm
Inner conductor (audio) 2
Inner conductor Ø (audio) 0,42 mm
Insulation resist. per 1 km 1 G Ohm
Insulation resist. per 1 km (audio) 1 G Ohm
Jacket material PVC
Jacket Ø 5,8 mm
Materiale PVC
Number of Channels (audio) 1
Packing
  • 100 m spool
  • 500 m spool
Properties
  • Analog
  • Digital 110 Ohm AES / EBU
  • OFC oxygen free copper
Shield. resistance per 1 km 30 Ohm
Shielding Copper spiral shielding with 0.10 mm indiv. strands
Shielding factor 0,95
Signal transmission symmetrical
Style variant round
Surge impedance (audio) 110 Ohm
Temperature max. 70 °C
Temperature min. -20 °C
Type Mikrofonkabel
UV-resistant Yes
Weight per 1 m 50 g
Width 5,8 mm
