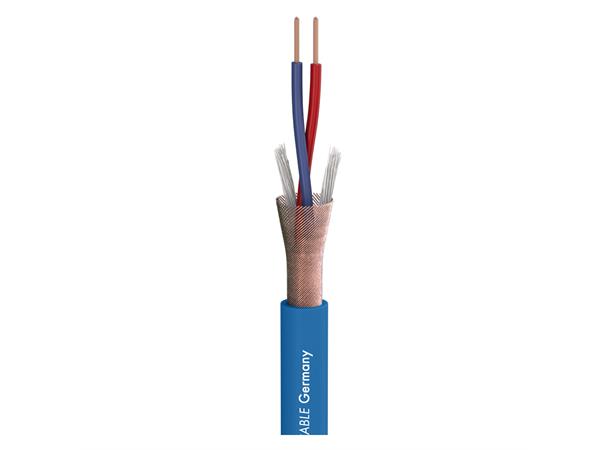

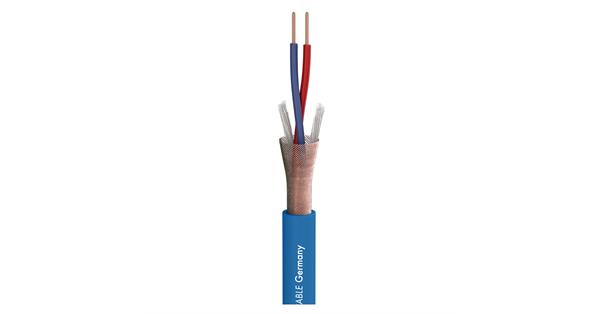

SC-STAGE Microphoncabel, 2x0,22mm², blå Høy kvalitet, oxygenfri kobber.

SC-STAGE Microphoncabel, 2x0,22mm², blå

Høy kvalitet, oxygenfri kobber.

Varenr: 200-0002
15,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
FargeBlå
SC-STAGE Microphoncabel, 2x0,22mm², sort Høy kvalitet, oxygenfri kobber.
SC-STAGE Microphoncabel, 2x0,22mm² Rød Høy kvalitet, oxygenfri kobber.
SC-STAGE Microphoncabel, 2x0,22mm², blå Høy kvalitet, oxygenfri kobber.
SC-STAGE Microphonca. 2x0,22mm², grønn Høy kvalitet, oxygenfri kobber.
SC-STAGE Microphoncabel, 2x0,22mm², gul Høy kvalitet, oxygenfri kobber.
SC-STAGE Microphoncabel, 2x0,22mm², grå Høy kvalitet, oxygenfri kobber.
SC-STAGE Microphonca. 2x0,22mm², Lilla Høy kvalitet, oxygenfri kobber.
CAPTAIN FLEXIBLE 2x0,22mm², oliven grønn Høy kvalitet, oxygenfri kobber.
SC-STAGE Microphoncabel, 2x0,22mm², sort Høy kvalitet, oxygenfri kobber.
Materiale
Vis varianter som liste
-+
ikke på lager (13 dager)
BeskrivelseTeknisk infoSupport
Beskrivelse

One thick coat...

Protects the inner structure against mechanical strain such as pulling, tearing and knotting. This is why we gave STAGE 22 a thick outer jacket of 6,40 mm. But also the electrical values and the technical construction are very presentable: the STAGE 22 has a low capacitance and high bending cycles, provided by the super thin, tightly stranded single wires. The shielding of bare Cu wires has an optical coverage of 99 % (instead of the otherwiseusual 85 %). The STAGE 22 is therefore the ideal cable for stage, homerecordists, renters and ELA technicians. The STAGE 22 is a very inexpensive cable, but you won't have to accept any trade-offs.

Advantages:

  • High transmission quality due to the usw of fine stranding
  • Very rugged owing to the thick, soft PVC jacket
  • Good shielding due to dence helical copper mesh screen
  • High flexibility makes it easy to reel
  • Affordable price

Application:

  • Stage application
  • Home recording
Teknisk info

Produktinformasjon

Application Microphone Cable
Application area
  • Installation
  • Mobile outdoor / indoor
  • Stage / live
AWG (audio) 24
BPVo-Euroclass Fca
Capac. cond./cond. per 1 m (audio) 68 pF
Capac. cond./shield. per 1 m (audio) 130 pF
Colour blue
Colour detailed blue
Conductor resistance per 1 km 87 Ohm
Copper strand Ø (audio) 0,10 mm
Copper strands (audio) 28
Farge Blå
Fire load per m 0,22 kWh
Height 6,4 mm
Impedance 100 Ohm
Inner conductor (audio)
  • 0,22 mm²
  • 2
Insulation resist. per 1 km 1 G Ohm
Insulation resist. per 1 km (audio) 1 G Ohm
Jacket material PVC
Jacket Ø 6,4 mm
Materiale PVC
Number of Channels (audio) 1
Packing
  • 100 m spool
  • 500 m spool
Properties
  • Analog
  • OFC oxygen free copper
Serie Stage 22 Highflex
Shield. resistance per 1 km 30 Ohm
Shielding Copper spiral shielding with 0.10 mm indiv. strands
Shielding factor 0,99
Signal transmission symmetrical
Style variant round
Temperature max. 70 °C
Temperature min. -20 °C
Weight per 1 m 44 g
Width 6,4 mm
