DMX + Power Multipair Looms
for the simple linking of devices which require both a DMX signal and 230 V mains
voltage (e.g. DMX fog machines, moving lights etc.). We fit our digital DMX512 multipair combi cable SC-MONOLITH 1 with a MENNEKES Schuko plug or powerCON® connector resp. and a NEUTRIK®3-pole or 5-pole XLR connector – and on the other side with a MENNEKES Schuko socket, IEC mains socket or NAC3FCB powerCON® resp. and a 3-pole or 5-pole XLR connector.
Our DMX cables have very low capacitive values and are therefore also an excellent choice for the audio or AES/EBU 110 Ω transmission.
CAUTION!
SOMMER CABLE will not assume any liability for personal and property damage which may occur due to the negligence of the generally applicable technical rules by the customer. The regulations of the DIN VDE 0100 parts 410, 430 ff. as well as the DIN VDE 0701, DIN VDE 0702 must be observed.
Attention !!!
The German safety plug we use (type EF 7/7) is compatible with the power outlets in Norway, France and Belgium. [/ B]

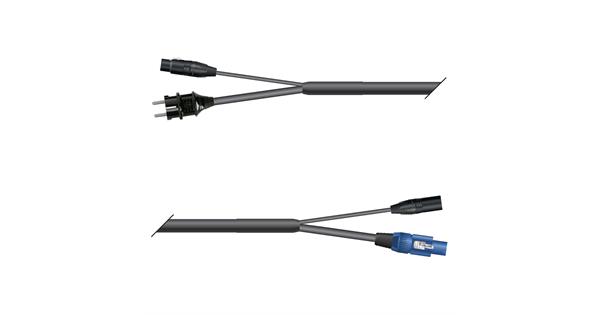

Configuration:
SC-Monolith 1; power: 3 x 1,50 mm²; DMX: 0,25 mm²; PVC Ø 13,00 mm; black (
500-0051-1)
1 x Mennekes SCHUKO, 2-pole , plastic-, screw-type-male connector, nickel plated contact(s), straight, max. 2,5 mm², black (
SCHU-MC230/16PSW)
NEUTRIK® XLR, 3-pole , metal-, Soldering-female connector, silver plated contact(s), straight, chrome-plated (
NC3FXX-BAG)
NEUTRIK® Cover cap for XLR MXX, XLR FXX black (
BXX0)
1 x NEUTRIK® powerCON®, 3-pole , plastic-, screw-type-female connector, silver plated contact(s), straight, blue (
NAC3FCA)
NEUTRIK® XLR, 3-pole , metal-, Soldering-male connector, silver plated contact(s), straight, chrome-plated (
NC3MXX-BAG)
NEUTRIK® Cover cap for XLR MXX, XLR FXX black (
BXX0)
