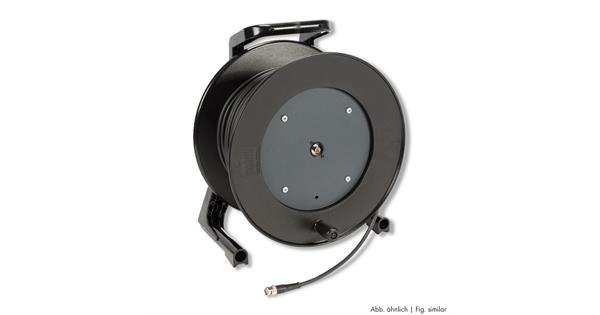

We deliver a light-weight and very robust SCHILL cable reel which has a fixing brake and a practical carrying handle. It is equipped with our flexible SC-Focusline MS Highflex video cable which is suitable for outdoor transmission and, because of its 100 % shielding, (Cu mesh screen + conductive AL/fleece) perfect for long distances with a very good image transmission. For HDSDI and 3G-SDI transmissions or extremely long transmission paths we recommend the reels loaded with the SC-Vector PLUS 1.2/4.8 DZ HD-SDI or SC-Vector PLUS 1.6L/7.3 3G-SDI cable types. The reel is fitted with a front panel and an insulated BNC-Crimp mounting sleeve.
Configuration: (VTH5G1H00-SW-SW)
100,00 m video cable SC-Vector (RCB); 1 x 0,80; PVC Ø 6,00 mm; black (600-0161)
1 x SCHILL Kabeltrommel, GT310, core: 170 mm, thread width: 132 mm, Solid rubber (GT310)
1 x HICON BNC 3G-SDI crimp-female connector 0.8/3.7, ground isolated, thread 1/2", gold (BNC0.8/3.7FEH)
1 x HICON Universal D-flange, D-flange, M3 threaded, metal (HI-DET-M)
1 x HICON BNC 3G-SDI crimp-male connector 0.8/3.7, straight, nickel coloured (BNC0.8/3.7HD)
