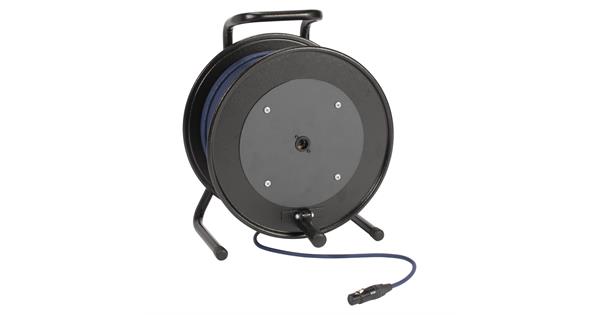

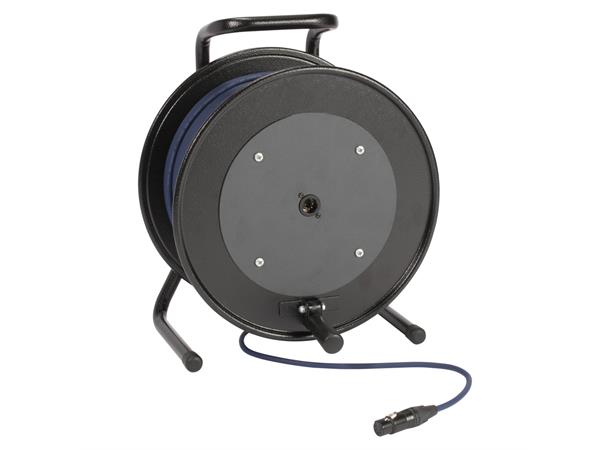

Premade cable drum systems are not only very practical and guarantee ongoing mobility, they are also very gentle to the cable. A cable drum ensures high durability and easy handling, e.g. with outdoor transmissions, at broadcasting stations or sporting and school events. We deliver a lightweight and very rugged HT300K metal cable drum from SCHILL. It is equipped with our stageproof, flexible 2-wire AES/EBU and DMX-capable BINARY 234 AES/EBU MKII cable which, owing to its large wire cross-section of 2 x 0.34 mm², is ideal for long distances. The drum is fitted with a front panel and a NEUTRIK® NC3MDLX-B XLR panel connector, the cable has an NC3FXX-B XLR cable socket. For DMX applications the system is also available with NC5MDLX-B and NC5FXX-B partially allocated 5-pole connectors .Pin assignment: shield to PIN 1, + to PIN 2, - to PIN 3

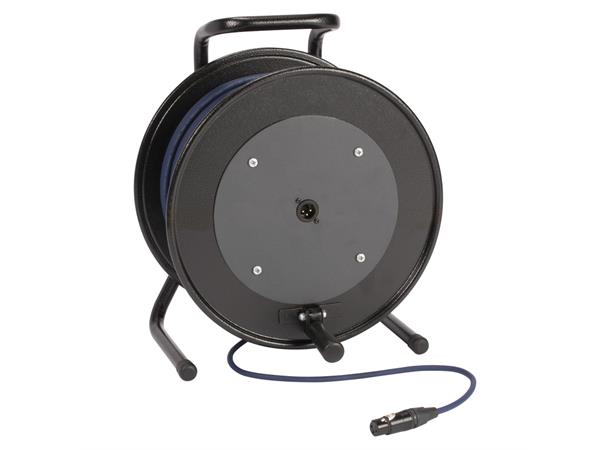

50.00 m DMX Binary 234 AES/EBU MKII; 2 x 0,34 mm²; PVC Ø 6,20 mm; blue (
520-0052)1 x SCHILL Kabeltrommel, HT300K-SW, core: 178 mm, thread width: 142 mm, metal (
HT300K-SW)
1 x NEUTRIK® XLR, 5-pol , metal-, Soldering-male connector, gold plated contact(s), Type D, chrome-plated (
NC5MDLX-B)1 x Sommer cable Front panel with 1 D-hole (XLR, etc.) for GT310, HT and SK-Modelle, anthracite RAL7016 (
RUND01)
1 x NEUTRIK® XLR, 5-pol , metal-, Soldering-female connector, gold plated contact(s), straight, chrome-plated (
NC5FXX-B)
