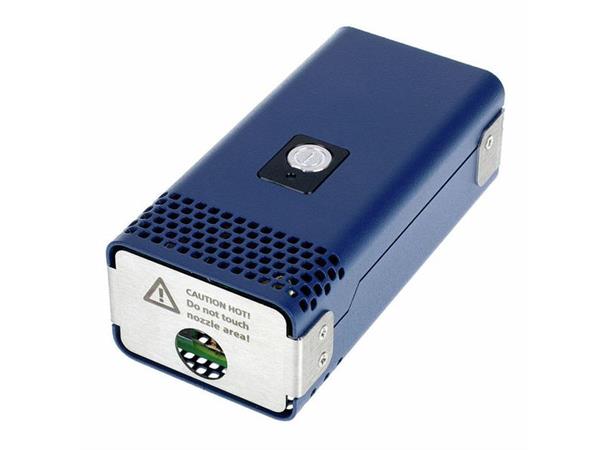

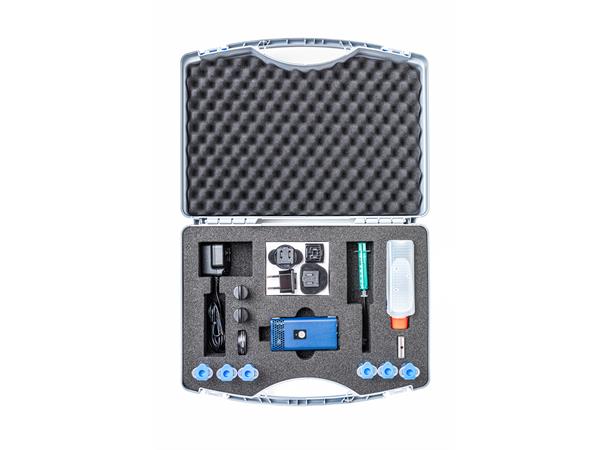

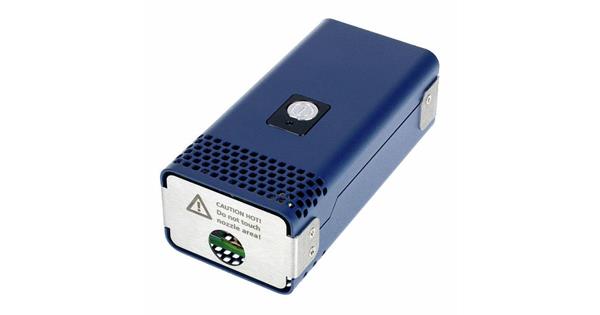

The Tiny S is a 30 W, battery powered, handheld fog generator. The Tiny S is easily distinguished by its internal battery, fluid syringe and small construction. It is the smallest fogger on the market. Commonly used for smaller atmospheric applications and perfect for either a quick small output or a long lasting effect from props. The Tiny S has the ability to be controlled via wired or wireless remote. It comes with 6 fluid syringes, battery, charger, and a 250 ml bottle of Tiny Fluid.
The Tiny S is the latest version of the successful Tiny series. In addition to the fluid reservoir the battery can now be screwed in directly to the machine. Thus, any external cable or fluid tube is no longer necessary and the Tiny S will consist of only one component.
The Idea
In the field of special effects, equipment for theatre, musicals and movies, individual solutions for placing fog effects are often needed.
Until now, many great ideas have failed due to the size, lack of exibility and price. In the field of airflow measurements/visualization and Blower-door-testing, the fog flow – even from the machines of the Tiny series (Tiny CX or Tiny FX) – often was too strong. With the Tiny S being 30 Watt, the output can be adjusted in two steps: low or high. Thus, the fog flow can be reduced again by selecting the step low. Ideal for any kind of airflow measurements.
The Solution
The Tiny S is called tiny, and its dimensions truly are tiny (L=10.3cm,W=5.1cm,H=3.5cm).In this small package, technology of outstanding performance has been realized.
The Tiny S is a fog generator that fills the gap, due to its small size and its programmability.
The generator
With the small dimensions and the light weight of only 250 grams (incl. battery and uid tank), this little gadget can be easily used where small amounts of fog are desirable.
The heart of the generator is a microprocessor which controls the fog emission. State of the Art technology opens a wide field of applications to the user.
For some applications it will be useful to program in a fixed fog amount. This can be done directly at the machine. The programmed fog amount can easily be reproduced and/or changed.

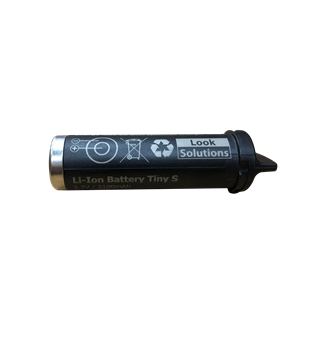

A compact battery, which is screwed into the machine, supplies the Tiny S with the 3.7 V supply.
Because of an intelligent control mechanism the battery supplies energy only when necessary.
Thus the fog time is greatly increased compared to other battery powered machines.
Control
The Tiny S is triggered with a start button which is integrated into the lid of the machine.

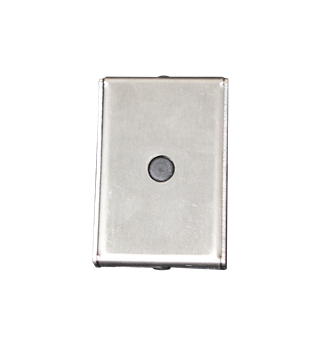

Also you can trigger the generator with the supplied cable remote. The remote will be connected to the machine by using a mini-stereo-jack cable.
Minimal fluid consumption
The fluid reservoir for the generator will be supplied, full and ready to use with Tiny-Fluid. The reservoir will be simply screwed into the machine.
The reservoirs can be refilled and therefore can be used several times.

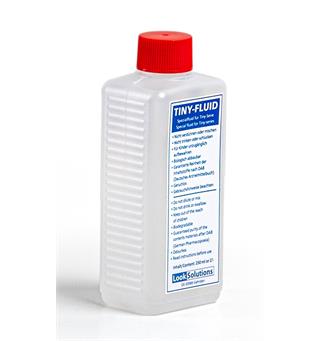

The Tiny-Fluid ensures dense fog is produced with the lowest of fluid consumption (approx. 0.5 ml/min. at con- tinuous output).
Service
The vaporizer of the machine can be easily changed by the user on site.
