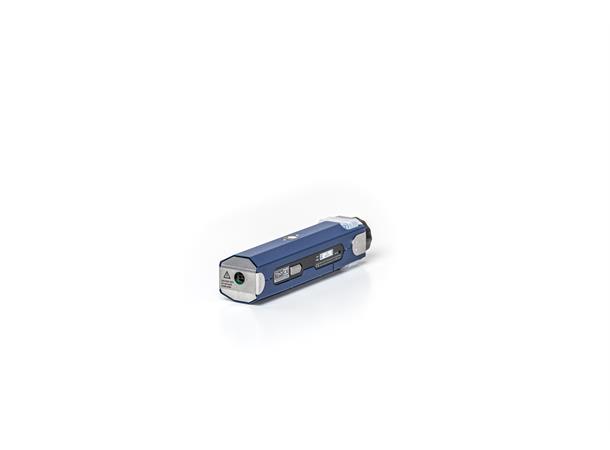

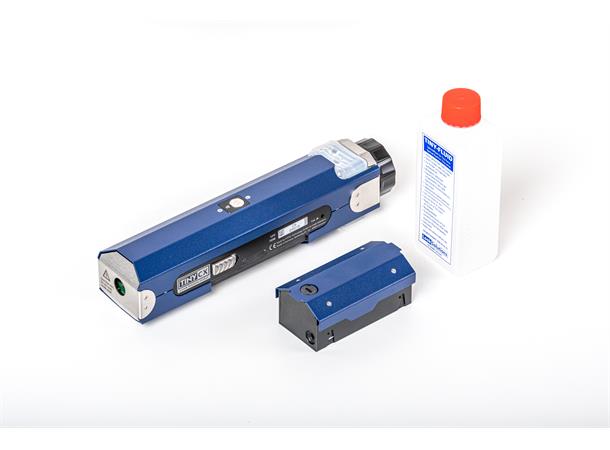

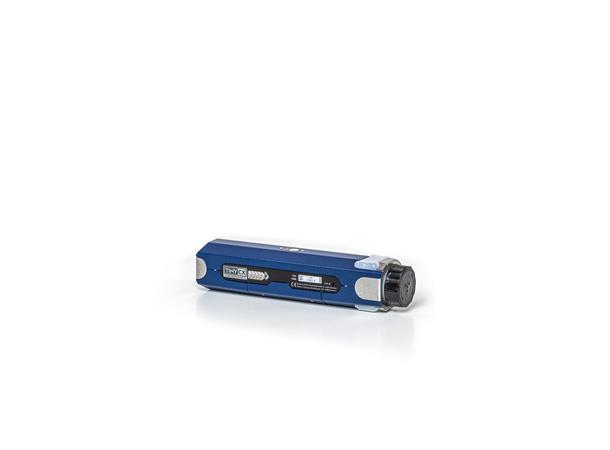

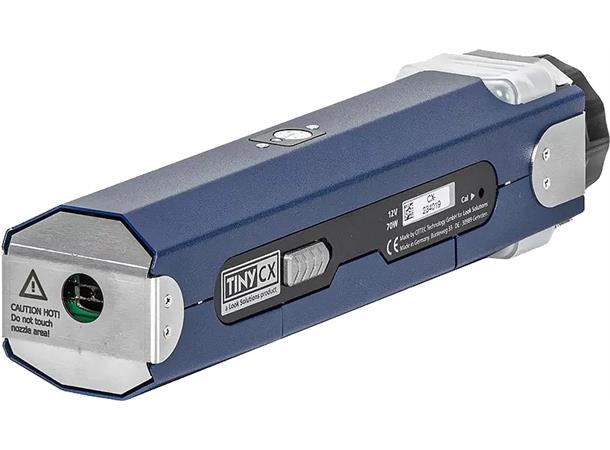

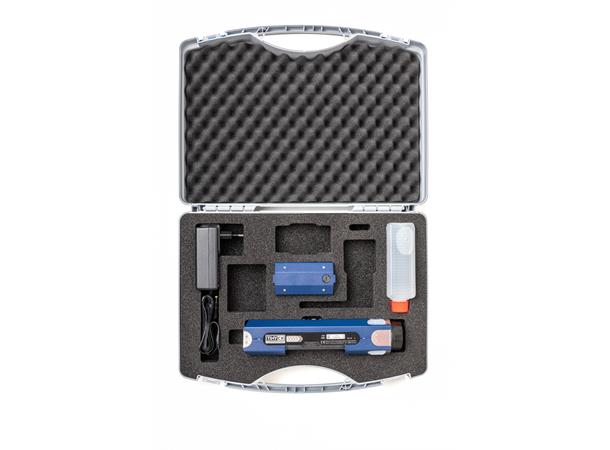

The Tiny CX is a 70 W, battery powered, handheld fog generator. The Tiny CX is similar to the Tiny FX but with all of the components housed in a cylindrical enclosure with a larger fluid reservoir. It’s rigid construction and ability to support wired or wireless and DMX control makes it a perfect solution for small fog effects. The Tiny CX comes with battery, charger, and a 250 ml bottle of Tiny Fluid.
The Tiny CX is the latest, modified version of the successful Tiny C07. Unlike the Tiny C07, the Tiny CX has a changeable battery. Thus, the machine is even more efficient. If the bat- tery is empty, a new one can simply be inserted without losing time with recharging.
The Machine
The Tiny CX is a handy, compact battery-driven fog generator. Its easy handling and quick start-up is outstanding. With its warming up time of less than a second, its light weight (630 grams) and the small dimensions (L=25 x W=5.3 x H=5.5 cm), this machine is applicable in many fields of operation. In the world of theatre, film, TV and photographers, musicals and special effects, as well as air flow and air tightness testing – everywhere where fog is needed quickly and unobtrusively, the Tiny CX is the perfect alternative to normal fog generators.
The Technology
All components of the machine have been built into a small and robust housing. Just like the Tiny FX, the heart of the generator is a programmable microprocessor which controls and supervises all important functions. This guarantees a continuous and safe running of the generator. A compact battery (L = 10.5 cm, W = 4.4 cm, H = 4.1 cm) supplies the Tiny CX with the 11.1 V supply. The battery can be inserted into the machine and can be easily chan- ged if necessary. Because of an intelligent control mechanism the battery supplies energy only when necessary. Thus the fog time is greatly increased compared to other battery powered machines.
The Operation
The Tiny CX is ready to go directly. Only the battery has to be inserted and the fluid tank has to be filled with original Tiny-Fluid. The fogging process can be started immediately and continuously.
Control
The Tiny CX is triggered with a start button which is integrated into the lid of the machine.
As an option, you can trigger the generator with cable remote or radio remote. The remote will be connected to the machine by using a mini-stereo-jack cable. You can also control the machine via DMX 512 with a DMX- converter.
Minimal fluid consumption
The Tiny-Fluid ensures dense fog is produced with the lowest of fluid consumption (approx. 2.3 ml/min. at continuous output).
Service
The vaporizer of the machine can be easily changed by the user on site.
