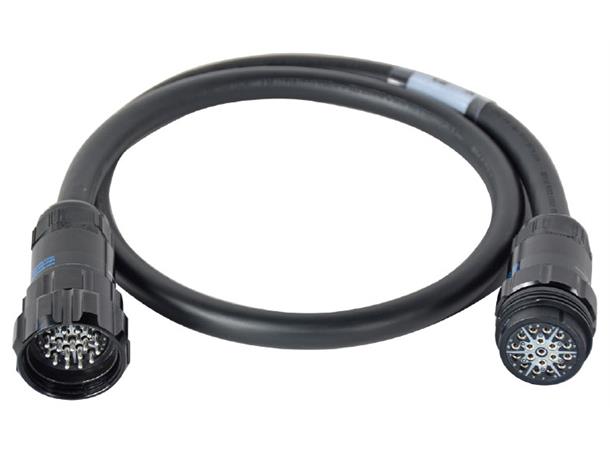

Socapex Cable ME18x2,5mm 30m LSC LM-LF CRIMP 30m

Socapex Cable ME18x2,5mm 30m

LSC LM-LF CRIMP 30m

Varenr: ME18G2.5-30M
11 108,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
-+
6 på lager
BeskrivelseTeknisk infoSupport
Beskrivelse

Description

19 pin Multi-cable carries 6-circuits of lighting power inside a single jacket, saving six individual runs of cable. Lex Socapex Compatible (LSC) EverGrip® cable assemblies go through two separate moulding processes to ensure they can stand up to the most demanding stage and studio applications. Male and Female 19 Pin Soca connectors with PVC 18G x 1.5mm2, 2.5mm2 or 4mm2cable.


Features and Benefits

  • Proprietary 6-circuit Socapex compatible lighting connectors feature 12 interlocking keys to help prevent spinning of the interior within the male and female housing
  • Thermoplastic resin premould creates a bond between the cable and connector for superior strain relief and secure terminations
  • Thermoplastic elastomer overmould absorbs impact and provides an insulated and secure gripping surface for easier mating and safe handling
  • Pins and sockets cannot push back, extending the life of the connector
  • Rugged construction helps prevent broken conductors and loose or damaged ground rings
  • Keyed design prevents misalignment of circuit conductors or mismatched connections
  • Connectors supplied with inserts cavities stepped forward to provide “first make last break” connection of ground contacts
  • “Tempered Spring” female contacts maintain constant pin pressure to help ensure low resistance connections
  • Machined aluminium housing with hard wearing black ?nish provides enhanced durability
  • Available for 1.5mm2, 2.5mm2 and  4mm2 cable
  • Specially formulated PVC jacket provides exceptional ?exibility and durability
  • Option available with bonded earth contacts
  • Custom labelling and colour coding available
Teknisk info

Produktinformasjon

Farge Sort
Lengde 30,00m
