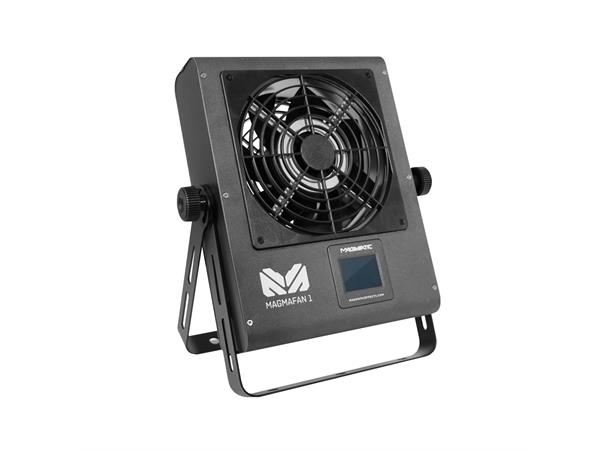

MagmaFan 1 is a compact all-purpose stage fan that features multiple control options, linear output control, low power consumption, adjustable blowing directions, and durable metal housing.
Low power consumption is only 80W, allowing you to put on the same circuit as your fog machine. The adjustable mounting/floor bracket included enables you to adjust the fan output 90 degrees. Easy to use onboard LCD touch screen control panel, intuitive DMX-512, and RDM control. Its durable aluminum housing design allows easy carry and storage, with optional wired and wireless remote control.
PERFORMANCE
Rated Power: 80W
Max. fan volume: (600cu ft/min.) (17 m3/min)
Fan angle: 0-360°
Fan speed range: 750-2800rpm
CONSTRUCTION
Durable aluminum housing
Compact lightweight mobile design
CONTROL
3 DMX Channel Modes (1 / 2 / 4)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and Wired Remotes
CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 15.55 in. (395mm)
Width: 13.19 in. (335mm)
Height: 4.72 in. (120mm)
Weight: 15 lbs. (6.8kg)
ELECTRICAL
AC 100-120V - 50/60Hz
3A (NFB)
Max Power Consumption: 120W
THERMAL
Maximum Ambient Temperature (Ta max) 104°F (40°C)
Exterior Surface Temperature, Steady State: 122°F (50°C)
