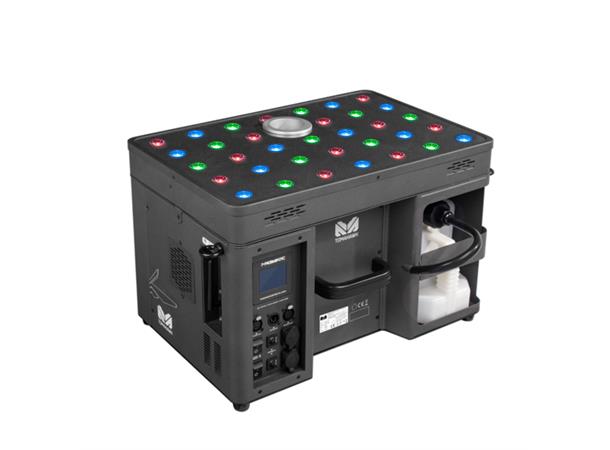

The Magmatic Tomahawk is a high velocity CO2 simulator fog machine with 34 x 8 watt, 4 in 1 RGBA LED's for creating dynamic effects. The Tomahawk can burst fog in multiple positions, rotating 180°degrees.
Easy to use onboard LCD touch screen control panel, intuitive DMX-512 and RDM control, a durable aluminum housing, and optional wired and wireless remote control options.
TECHNICAL DATA
FEATURES
85,000 cu.ft per minute
12 second continuous output blast
180° multi position fog burst
34, 8 watt RGBA LED's
Durable, tour-ready, aluminum housing
SPECIFICATIONS
PERFORMANCE
Rated Power: 1450W x2
Max Output: 85,000 CFM* (cu ft/min.)
Max Continuous Output: 12 Seconds @ Full
Max Throw Distance: 25 Feet
Initial Ready Time: 12 Minutes
Cycling Ready Time: 1 Minute
Fluid Capacity: 5.6L
Fluid Consumption: 420ml/min.
COMPATIBLE FLUIDS
Atmosity Extreme Filtered Fog Fluid (AEF) Available as a 2, 4 and 20 Litre
Atmosity Quick Dissolving Fog Fluid (AFF) Available as a 2, 4 and 20 Litre
CONSTRUCTION
Thermally Protected Heat Exchanger
Advanced HPA (high pressure air) Pump Technology
Energy Saving Mode with Auto-Clean Process
Sealed Fluid Reservoir
External Visual Fluid Level Detection
CONTROL
4 DMX Channel Modes (1 / 5 / 6 / 37)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional Magfly Wireless DMX Receiver
Optional RF Wireless and Wired Remotes
CONNECTIONS
5-pin locking XLR, In/Out DMX Connections
4-pin connection for optional wired remote
IP65 x2, Locking Input Power Connections
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 23.03 in. (585mm)
Width: 15.43 in. (392mm)
Height: 13.58 in. (345mm)
Weight: 79.36 lbs. (36kg)
ELECTRICAL
AC 100-120V - 50/60Hz
20A x2 (NFB) Resettable Breakers
Max Power Consumption: 3260W
THERMAL
Maximum Ambient Temperature (Ta max) 104°F (40°C)
Exterior Surface Temperature, Steady State: 140°F (60°C)
