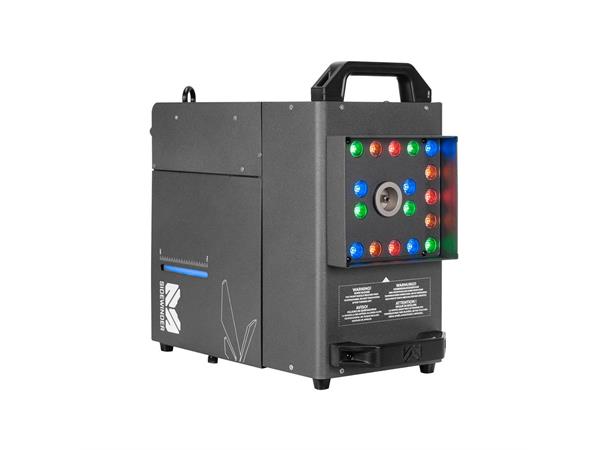

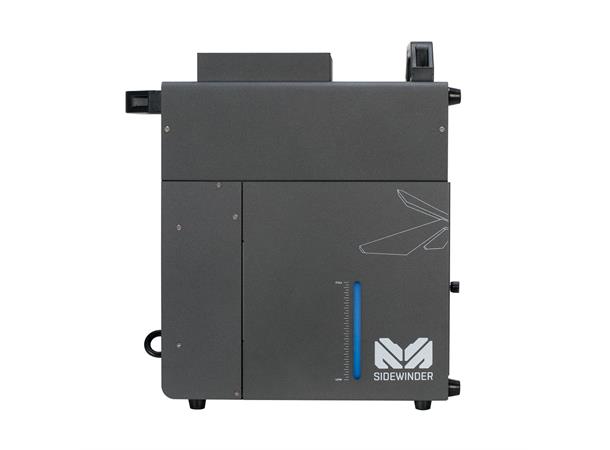

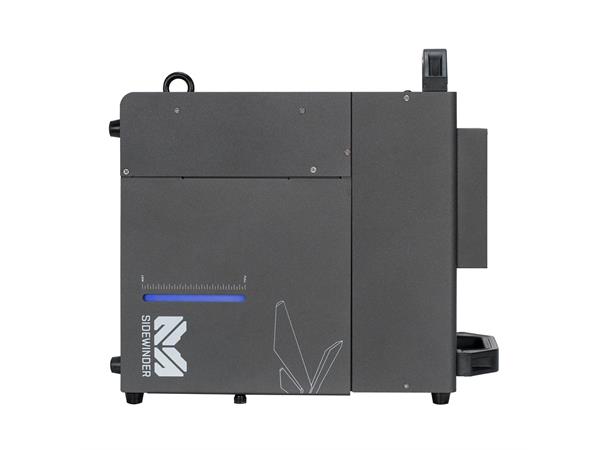

The Magmatic Sidewinder is a high velocity CO2 simulator fog machine. Including 22 x 2 watt RGBA LEDs. The Sidewinder can burst fog in multiple positions, rotating 180° degrees. Easy to use onboard LCD touch screen control panel, intuitive DMX-512 and RDM control, a durable aluminum housing, and optional wired and wireless remote control options.
TECHNICAL DATA
FEATURES
High-velocity CO2 simulator fog machine
50,000 cu.ft per minute
Four 10-second 20-ft bursts
180° multi position fog burst

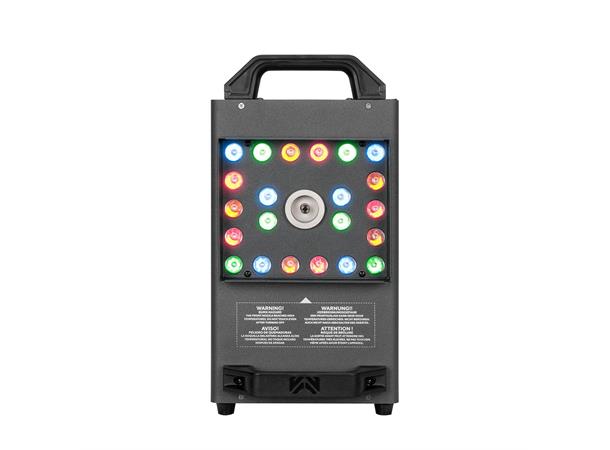

22, 3watt RGBA LED's
Durable, tour-ready, aluminum housing
SPECIFICATIONS
PERFORMANCE
Rated Power: 1450W
Max Output: 50,000 CFM* (cu ft/min.)
Max Continuous Output: 10 Seconds @ Full
Max Throw Distance: 20 Feet
Initial Ready Time: 9 Minutes
Cycling Ready Time: 1 Minute
Fluid Capacity: 2.5L
Fluid Consumption: 180ml/min.
COMPATIBLE FLUID
Atmosity Flash Fog Fluid (AFF, available as a 2, 4 and 20-litre)
Atmosity Extreme Filtered Fog Fluid (AEF, available as a 2, 4 and 20-litre)
CONSTRUCTION
Thermally Protected Heat Exchanger
Advanced HPA (high pressure air) Pump Technology
Energy Saving Mode with Auto-Clean Process
Sealed Fluid Reservoir
External Visual Fluid Level Detection
Compact Light Weight Mobile Design
CONTROL
3 DMX Channel Modes (1 / 3 / 7)

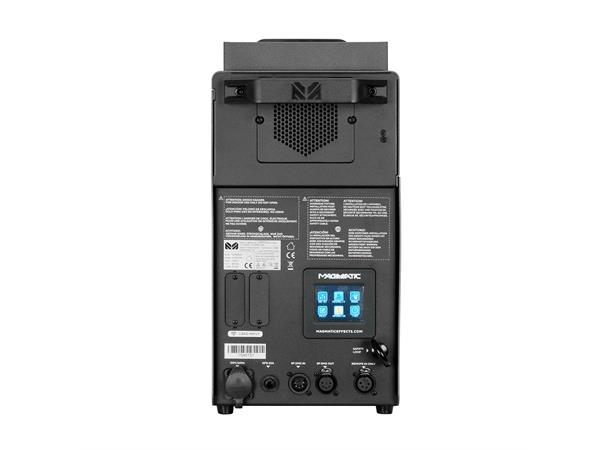

Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional E-FLY Wireless DMX Transceiver
Optional RF Wireless and Wired Remotes
CONNECTIONS
5pin locking XLR In/Out Connectors
IP65 Locking Power Input Connector
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 14.80 in. (376mm)
Width: 7.60 in. (193mm)
Height: 16.26 in. (413mm)
Weight: 31.06 lbs. (14.08kg)
ELECTRICAL
AC 230-240V - 50/60Hz
10A (NFB)
Max Power Consumption: 1560W
THERMAL
Maximum Ambient Temperature (Ta max) 104°F (40°C)
Exterior Surface Temperature, Steady State: 140°F (60°C)
OPTIONAL ACCESSORIES
MagFLY Card
MagAPP Card
MagRF Card
Atmosity Flash Fog Fluid (AFF, available as a 2, 4 and 20-litre)
Atmosity Extreme Filtered Fog Fluid (AEF, available as a 2, 4 and 20-litre)
