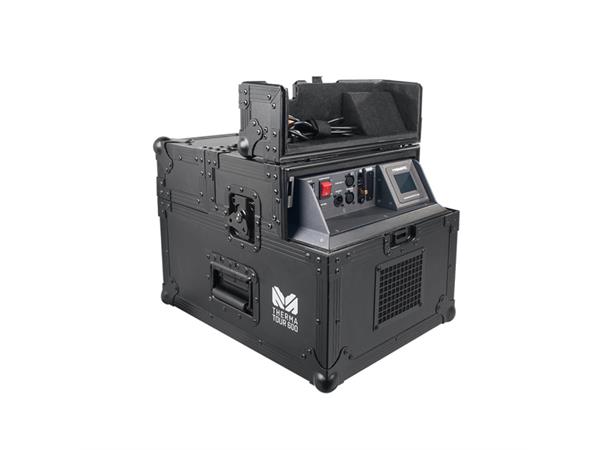

The Therma Tour 600 is a premium oil-based haze effect generator that produces an exceptionally fine, long-lasting atmospheric haze that excels at revealing light beams and mid-air effects.
The 350W Therma Tour 600 creates a safe, clean and odorless haze effect that leaves no residue. The perfect small-particle haze for highlighting light beams, the unit holds two liters of fluid for over 35-hours of run time with no warm up time required. Hang time is incredibly long at over 3 hours in an enclosed space!
Compact yet ruggedly built to withstand the day in and day out rigors of on-the-road use, multiple control options include a wireless RF remote, Magmatic Magfly or Elation E-Fly wireless DMX, wired remote, Magmatic App, and manual, on-board, touch screen control.
TECHNICAL DATA
FEATURES
350 watt low power consumption
Over 35 hours of run time
Haze lasting up to 3 hours after machine is off
Rugged mobile road case design
Soundproof insulation for indoor use
PERFORMANCE
Rated Power: 350W
Max Output: 3,800 CFM* (cu ft/min.)
Ready Time: Instant
Fluid Capacity: 0.66043 Gallons (2.5 liters)
Fluid Consumption: 0.033814 oz/min (1.0 ml/min)
*approximate
COMPATIBLE FLUID
Atmosity Oil Based Haze Fluid (ARH), available as a 2 or 4 litre container
or
Atmosity Premium Haze Fluid (AAH), available as a 2 or 4 litre container
NOTE: AAH Water base fluid can be used but cannot switch between oil/water without cleaning out entire fluid system prior to switching
CONSTRUCTION
Advanced HPA (high pressure air) Pump Technology
Energy Saving Mode with Auto-Clean Process
Sealed Fluid Reservoir
External Visual Fluid Level Detection
Compact Light Weight Mobile Design
CONTROL
2 DMX Channel Modes (1 / 3 Channels)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and Wired Remotes
CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 20.2 in. (514.1mm)
Width: 14.7 in. (374.1mm)
Height: 14.1 in. (365.1mm)
Weight: 66 lbs. (30kg)
ELECTRICAL
AC 230V 50Hz
Breaker Size: 5A
Max Power Consumption: 370W
THERMAL
Maximum Ambient Temperature (Ta max) 104°F (40°C)
Exterior Surface Temperature, Steady State: 122°F (50°C)
OPTIONAL ACCESSORIES
Atmosity Oil Based Haze Fluid (ARH), available as a 2 or 4 litre container
or
Atmosity Premium Haze Fluid (AAH), available as a 2 or 4 litre container
MagFLY Card
MagAPP Card
MagRF Card
