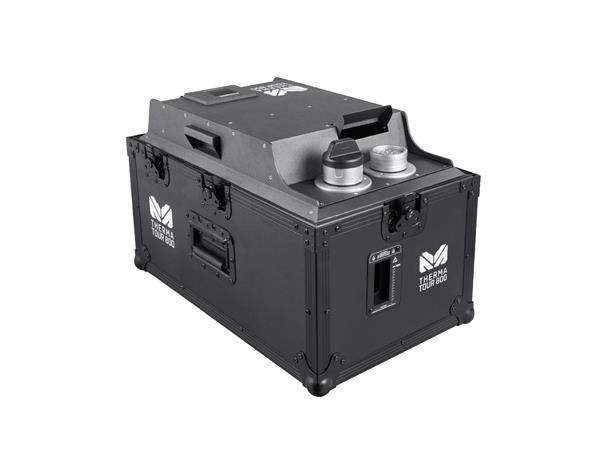

The Therma Tour 800 is a powerful oil-based haze effect generator that produces an exceptionally fine, long-lasting atmospheric haze that excels at revealing light beams and mid-air effects. The 800W Therma Tour 800 creates a safe, clean and odorless haze effect that leaves no residue. The perfect small-particle haze for highlighting light beams, the unit holds two liters of fluid for over 35-hours of run time with no warm up time required. Hang time is incredibly long at over 3 hours in an enclosed space! Compact yet ruggedly built to withstand the day in and day out rigors of on-the-road use, multiple control options include a wireless RF remote, Elation E-Fly wireless DMX, wired remote, Magmatic App, and manual touch screen control.
KEY FEATURES
800 Watt low power consumption
Over 35 hours of run time
Haze lasting up to 3 hours after machine is off
Rugged mobile road case design
Soundproof insulation for indoor use
DYNAMIC EFFECTS
Output: 5600 cu.ft / Min
External Visual Fluid Level Detection
COMPATIBLE FLUID
Atmosity ARH-2L (Oil base haze fluid)
CONSTRUCTION / PHYSICAL / PERFORMANCE
External Visual Fluid Level Detection
Fluid Tank Capacity: 2.5L
Fluid Consumption: 1.5ml / Min.
CONTROL
2 Card Inputs
RDM (Remote DMX)
Control Protocol: DMX
DMX Channels: 1,3
DMX Modes: 2
On-Board Timing Control
4 Factory Presets
4-Pin Wired Remote Input
Touch Screen Display
Manual Hazing
CONNECTIONS
Data Connectors: 5-Pin XLR/Out, 4-Pin XLR Out
Locking Power Connector
SIZE / WEIGHT
Length: 23.78 in. (604mm)
Width: 14.69 in. (373mm)
Height: 15.83 in. (402mm)
Weight: 93 lbs. (42kg)
ELECTRICAL
Power Consumption: 820w
Input Voltage: 120V, 230V, 240V, 50 & 60Hz
Breaker Size: 15A (120V version)
Breaker Size: 10A (230V version)
THERMAL
Maximum Temperature (Ambient): 113°F (40°C)
Exterior Surface Temperature: 122°F (50°C)
WHATS INCLUDED
Flight Case
14 AWG Locking Power Cable
OPTIONAL ACCESSORIES
MAGFLY Card
MAGAPP Card
MAG-RF Card
Atmosity AAH-2L (Water base haze fluid)
Atmosity ARH-2L (Oil base haze fluid)
