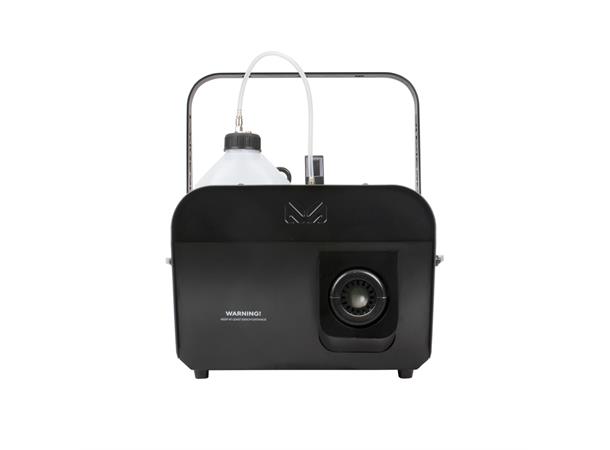

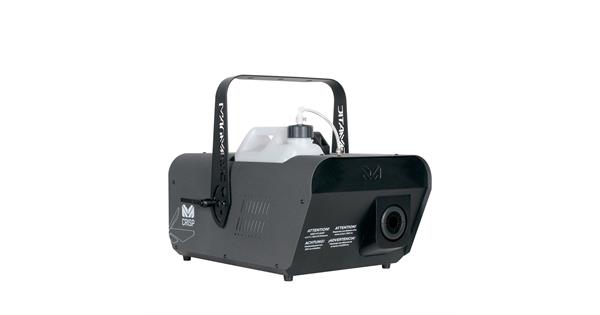

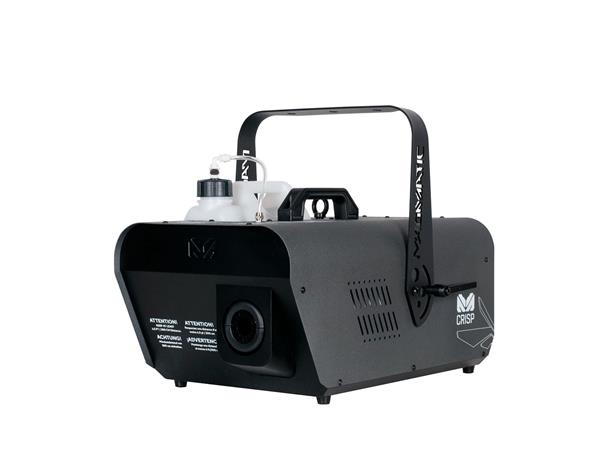

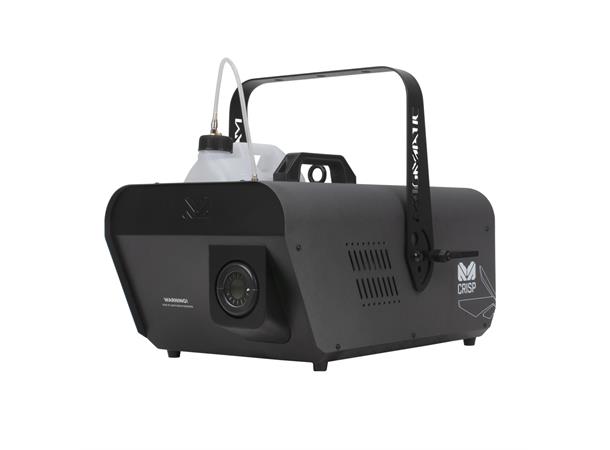

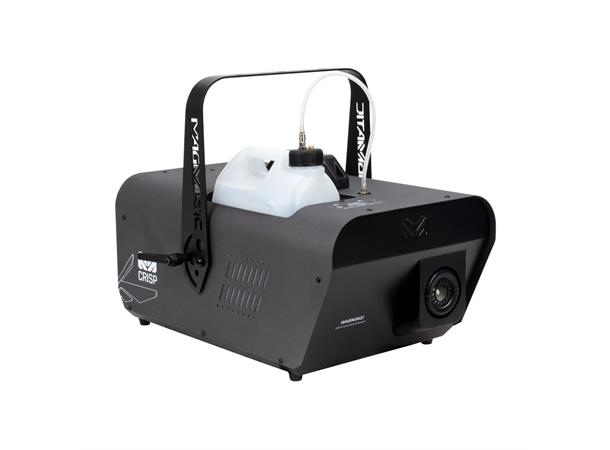

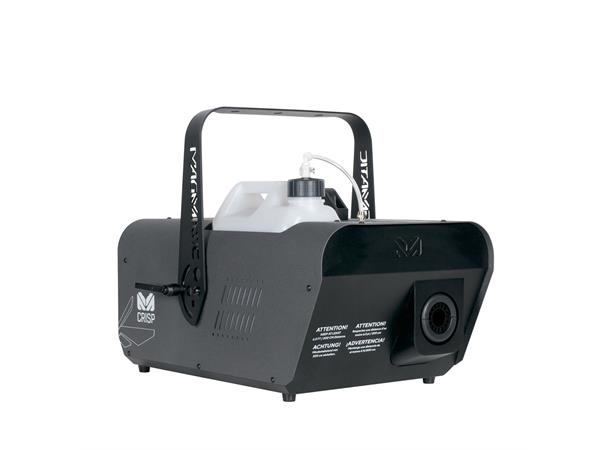

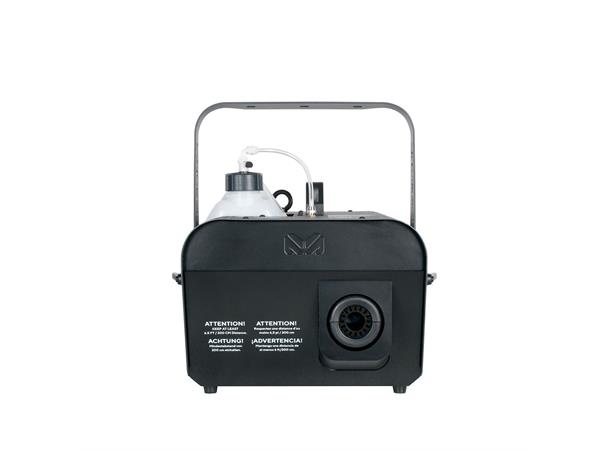

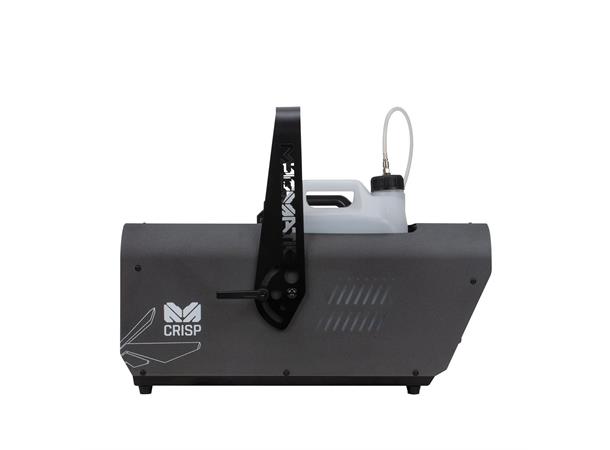

The Magmatic CRISP™ is a high volume compact light weight snow machine with advanced technology providing adjustable snowflake size and silent operation for noise sensitive environments. The new all-in-one APF (air pump fan) system together with the Auto-Clean feature, provides less clogging and requires less maintenance. Features include an easy to use onboard LCD touch screen control panel, intuitive DMX-512 and RDM control, a durable aluminium housing, and optional wired and wireless remote control options.
TECHNICAL DATA
FEATURES
1,250W High Volume Snow Machine
Silent Operation for Noise Sensitive Environments
Advanced APF (air pump fan) Technology
Auto-Clean Process
Compact Light Weight Robust Design
Onboard LCD Touch Control Panel
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF
Optional MAGRemotes
SPECIFICATIONS
KEY FEATURES
High-Powered 1,250W Snow Machine
Silent Operation for Noise Sensitive Environments
Advanced APF (air pump fan) Technology
Auto-Clean Process
Compact Light Weight Robust Design
Onboard LCD Touch Control Panel
DYNAMIC EFFECTS
Snow Adjustment: 0-100%
Fan Speed Adjustment 50% or 100%
Snow Distance Output: 39.3 ft/ 12m
Self-Clean Function
Auto Shut-off
Advanced HPA (High Pressure Air Pump)
CONTROL
2 Card Inputs (For optional Magfly, MagApp & MagRF cards)
RDM (Remote Device Management)
Control Protocol: DMX512, DMX Modes: 3 (1 / 3 / 5)
On-Board Timing Control
5 Factory Presets
4-pin Wired Remote Input
Touch Screen Display
On-Board Manual Snow Trigger

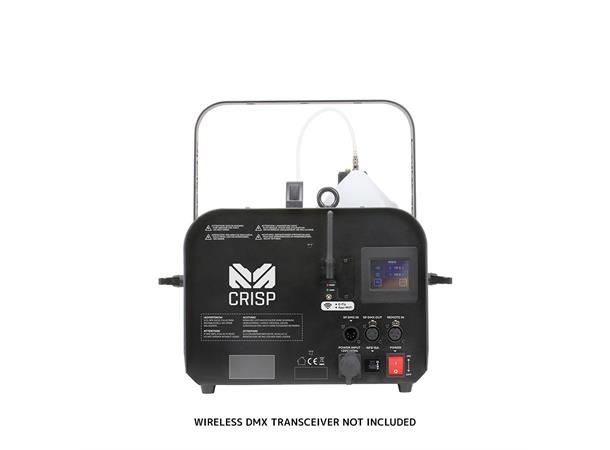

CONNECTIONS
Data Connectors: 5-pin locking XLR In/Out
4-pin Connector for optional wired remote
Locking Power Connector
CONSTRUCTION / PHYSICAL / PERFORMANCE
Dimensions: 20.4in x 15.94in x 16.30in / 518.1 (528.8 w/Antenna) x 405 x 415mm
Weight: 33.5 lbs / 15.2kg
External Visual Fluid Level Detection
Fluid Tank Capacity: 5L
Fluid Consumption: 16.9oz/min / 500ml/min
ELECTRICAL
Power Consumption: 1250w
Input Voltage: 230 - 240VAC @ 50Hz
Breaker Size: 9A
CERTIFICATES / THERMAL
IP Rating: IP20, dry location
Maximum Temperature (Ambient): 104° F (40° C)
Exterior Surface Temperature: 122° F (50° C)
WHAT'S INCLUDED
Hanging Bracket
14 AWG Locking Power Cable
OPTIONAL ACCESSORIES
MagFLY Card
MagAPP Card
MagRF Card
RECOMMENDED FLUID
Atmosity Premium Snow Fluid. APS-4L, APS-20L
