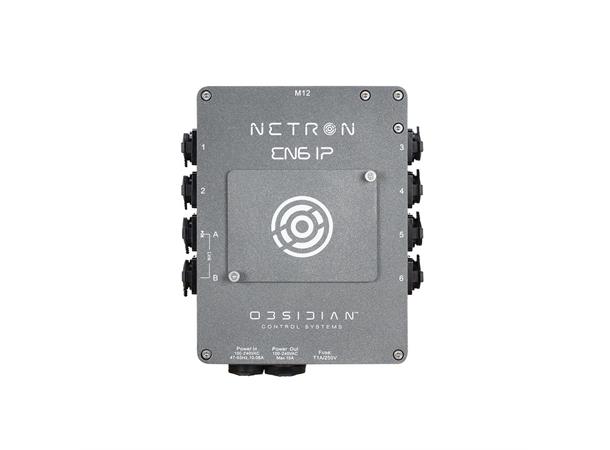

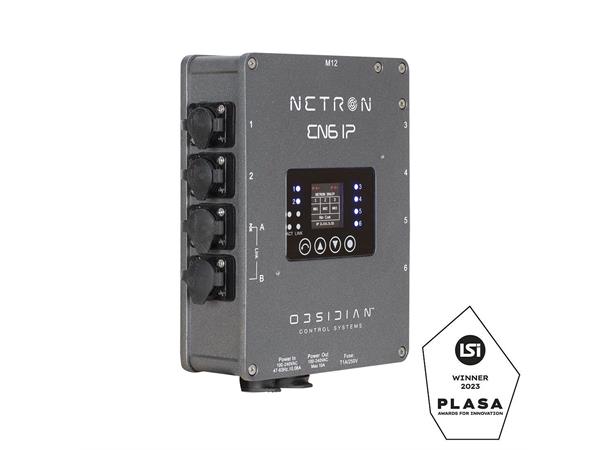

The Netron EN6 IP is a powerful Ethernet to DMX gateway with six RDM compatible ports in a rugged IP65 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris.

The EN6 IP unlocks the four Universe ONYX NOVA Edition.

FEATURES

IP65 Ethernet to DMX Gateway
RDM, Artnet and sACN support
Factory and user presets for plug and play setups
Line Voltage or POE powered
1.8” OLED Display and waterproof touch buttons
99 Internal cues with fade and delay time
Remote configuration via internal webpage
Powder-coated aluminum chassis
Unlocks ONYX NOVA 4-Universe License

SPECIFICATIONS

MOUNTING

Standalone
Truss-mount (M12)
Wall-mount

CONNECTIONS
Sides

(6) 5pin IP65 DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output
(2) Locking IP65 RJ45 Ethernet network connections (1x POE)

Bottom

Locking IP65 Power In/Thru

PHYSICAL

Length:
Width:
Height:
Weight:

ELECTRICAL

100-240 V nominal, 50/60 Hz
POE 802.3af
