The Netron EN12i is a powerful high-density Art-Net and sACN to DMX gateway with twelve RDM compatible wire terminal or RJ45 outputs. Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for permanent installations requiring a lot of physical DMX ports. Analog contact closures or an optional remote button station allow for recall of presets, routings, mergers or any of the internal cues.
The innovate wiring configurations allow the NETRON EN12i to be configured with RJ45, screw-terminals or IDC (Insulation displacement connectors). All options are included through exchangeable backplates.
Additionally, the EN12i provides two convenient front access ports to the internal gigabit switch and a single 5pin DMX output.

• RJ45, screw terminal or IDC connectivity
• Back facing wiring plates for permanent rack installation
• Convenience Network and DMX port on front plate
• RDM, Art-Net and sACN support
• Factory and user presets for plug and play setups
• Line Voltage or PoE powered
• 1.8” OLED Display with rotary knob
• 99 Internal cues with fade and delay time
• Customizable routing and merging options
• Remote configuration via internal webpage
• Contact closures and Remote Button Station (optional) for cue or preset recall
• Powder-coated aluminum rackmount housing
• Unlocks ONYX NOVA 4 Universe License
• NETRON CLU for remote configuration and firmware updates

• Rackmount

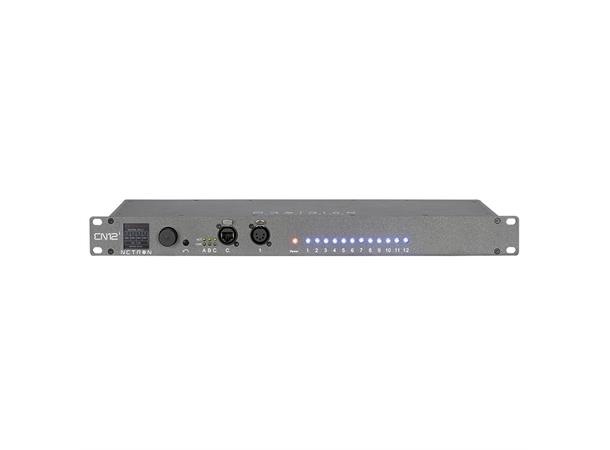

Front

• (1) 5pin XLR DMX/RDM port
• Optical and galvanic isolation
• Bidirectional for DMX In and Output
• (1) Locking RJ45 Gigabit Ethernet (Low Latency Switch)
• Full color OLED display
• LED Status feedback array
• Encoder w. Push to Select / Exit Button

• (2) Locking RJ45 Ethernet network (Low Latency Switch)

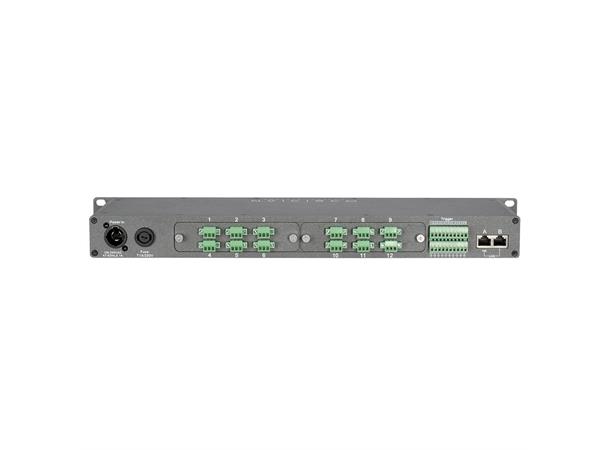

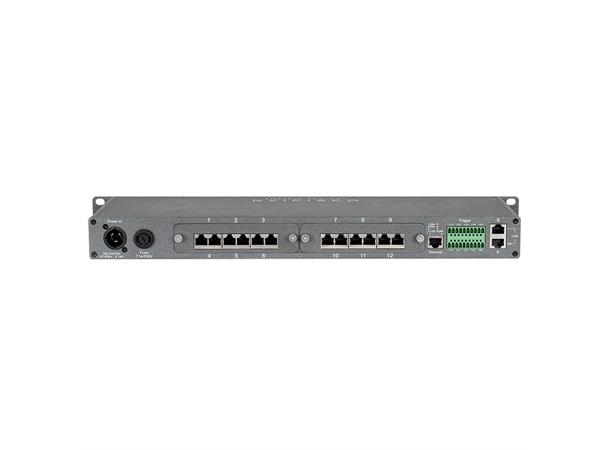

• (2x6) DMX connection plate RJ45 (ESTA) or Terminal Block (DMX In/Out)
• (10) Contact Closures (2x 10pin Terminal Block)
• RJ45 Remote Port for optional BS10 Button Station
• IP65 Locking Power In/Thru

• Insulation Displacement Connector (IDC) with locking screws, 20-22 AWG
• Terminal Wire Connector with locking screws, 20-22 AWG

• sACN E1.31
• Art-Net
• DMX512-A E1.11 (In / Out)
• RDM E1.20

• Ethernet Port Speed 10/100/1000Mbps
• VLAN Group Support
• MDI / MDIX Port Sensing
• HTTP Remote Commands (Post, Get)
• HTML Web Remote

• Length: 165.8 mm (6.5 in.)
• Width: 482.5 mm (19 in.)
• Height: 44 mm (1.7 in.)
• Weight: 1.8 kg (4 lbs.)

• AC 100-240V nominal, 50/60 Hz
• PoE802.3af
• Power Consumption: 9W

Approvals / Ratings

• cETLus / CE / FCC / IP20

• 1.5m IP65 Locking power cable (EU or US version)
• (2) 6-port RJ45 ESTA DMX Connection plate
• (2) 6-port Terminal Block Connection plate
• (12) Screw Terminal with security screws
• (12) IDC Connector with security screws
• (2) 10-port Terminal Block for Contact Closures
